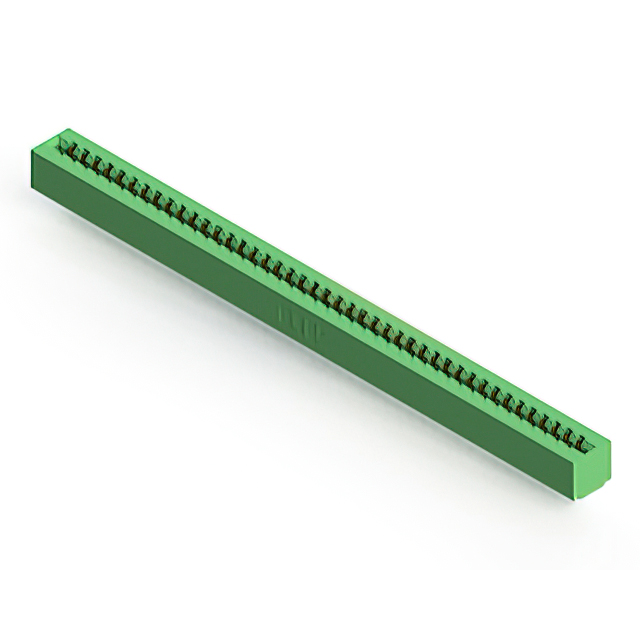

305-086-521-201

$11.48

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk

SKU:d389a25d7dda Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-086-521-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-086-521-201

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：86
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-086-521-201

305-086-521-201

Edgeboard Connectors Overview

The EDAC Inc. 305-086-521-201 is a standard card edge connector from the 305 series, designed as an 86-position receptacle. It features a 3.96 mm (0.156 inch) pitch and supports dual-edge card types with a thickness range of 1.37 mm to 1.78 mm. The connector utilizes gold-plated copper alloy contacts for reliable signal transmission and offers a current rating of 5 A. Constructed with thermoplastic insulation, it operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure mating with specified card edges
Gold-plated copper alloy contacts ensure durable electrical connectivity
Thermoplastic housing material provides stable insulation properties
Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

Industrial control systems requiring high-density interconnects
Telecommunications equipment backplanes
Computing hardware motherboards and expansion cards

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 86-position count and 3.96 mm pitch before integration. Confirm compatibility with the target PCB panel thickness range of 1.37 mm to 1.78 mm. Ensure the solder pin termination type aligns with the assembly process capabilities. Check for RoHS compliance status if environmental regulations apply to the final product deployment.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count interface is necessary for dual-edge board applications. The 5 A current rating suits moderate power distribution needs alongside signal lines. Consider the vertical panel mount requirement for chassis integration. Verify that the green color coding meets visual identification standards for the assembly line.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options. The 305-086-521-201 specifically addresses the need for dense connections in restricted spaces while maintaining robust mechanical stability through its thermoplastic construction and precise contact alignment.
