Edgeboard Connectors Overview

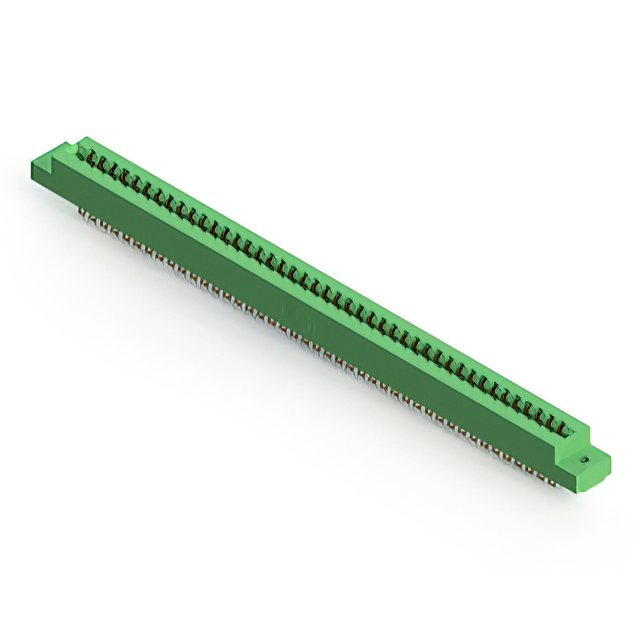

The EDAC Inc. 305-086-555-202 is a standard card edge connector receptacle featuring 86 positions in a dual-row configuration. It utilizes a 0.156-inch (3.96 mm) contact spacing and a 0.140-inch (3.56 mm) row spacing. The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, rated for 5 A current. The housing is green thermoplastic polyester, supporting panel mount installation at a straight angle.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated contacts ensure reliable electrical conductivity
• Thermoplastic polyester insulation provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to ensure correct contact plating and housing color specifications. Confirm that the target application supports the specified 0.062-inch board thickness requirement. Check RoHS compliance status against current regulatory standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-pin-count dual-row interface is required for vertical panel mounting. Ensure the mating PCB meets the strict 1.57 mm thickness tolerance. Compare against single-row alternatives if space constraints allow, noting that this specific series offers higher density within the same footprint profile.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, a line of standard card edge connectors designed for robust industrial applications. The series offers various position counts and mounting styles, providing modular solutions for system integrators needing standardized interconnect interfaces across different hardware platforms.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305-series variants for pin count adjustments. Verify mechanical compatibility with existing chassis cutouts and mating card dimensions before substituting.
