305-086-555-204

Edgeboard Connectors Overview

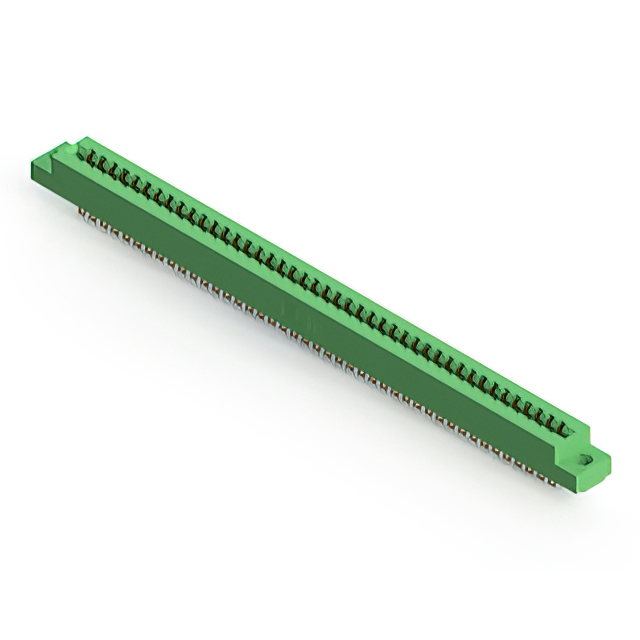

The EDAC Inc. 305-086-555-204 is a standard card edge connector from the 305 series, designed for dual-row applications. It features 86 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a solder termination type. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic material, providing insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row configuration for high-density signal routing
• Gold-plated contacts ensure reliable conductivity
• Thermoplastic housing provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Automotive electronics interface modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange specifications. Ensure compatibility with target PCB thickness standards before procurement. Cross-reference RoHS compliance status with the latest manufacturer declarations to meet regulatory requirements for your specific region and application constraints.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge solution with 86 positions is required. The 3.96 mm pitch accommodates standard board layouts. Verify that the 5 A current rating meets system power distribution needs. Confirm vertical mounting orientation aligns with chassis design constraints and panel cutout dimensions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-086 variant specifically addresses high-pin-count requirements. It is manufactured by EDAC Inc., a provider of electronic interconnect solutions. The product line emphasizes durability and consistent electrical performance in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match critical dimensional or electrical parameters. Ensure any substitute maintains the 3.96 mm pitch and dual-row architecture.
