305-086-555-208

Edgeboard Connectors Overview

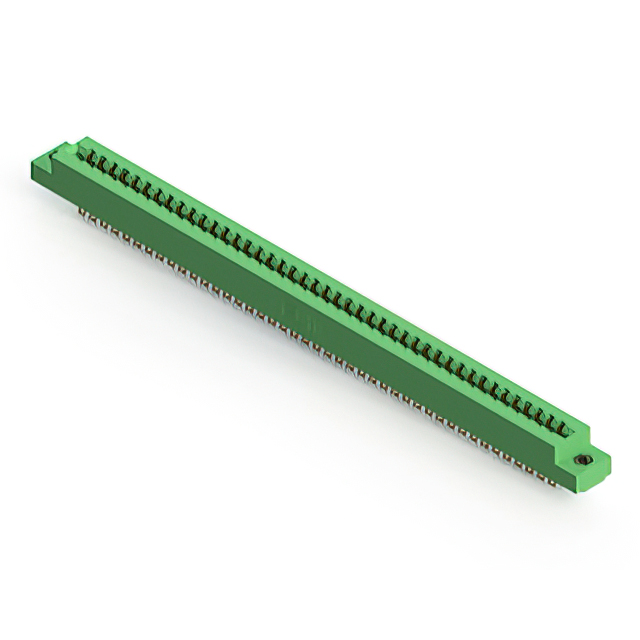

The EDAC Inc. 305-086-555-208 is a standard card edge connector receptacle featuring 86 positions with dual rows. It utilizes a 3.96 mm (0.156 inch) contact spacing and a 3.56 mm row spacing. Designed for .062 inch nominal thickness printed circuit boards, it employs gold-plated copper alloy contacts terminated via solder. The unit operates within a temperature range of -40°C to +105°C and includes flush mount flange features with top opening and threaded inserts.

Edgeboard Connectors Feature Summary

• Dual-row female connector design accommodating standard PCB thicknesses
• Gold-plated contacts ensure reliable electrical performance
• Flush mount configuration with integrated threaded insert options

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications infrastructure equipment
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific mounting style requirements against the datasheet specifications before ordering. Confirm that the target application supports the specified operating temperature range and current ratings. Ensure compatibility with the designated PCB thickness and contact spacing dimensions to guarantee proper mechanical fit and electrical continuity during assembly.

Edgeboard Connectors Selection Notes

Select this component when high-density interconnects are required for thick PCBs. Consider the dual-row layout for increased pin count in limited space. Evaluate the flush mount option if panel integration is necessary. Compare against single-row alternatives if lower density suffices. Verify environmental conditions match the rated temperature limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles. It is designed for general-purpose electronic applications requiring durable connections. The model number encodes specific attributes such as position count and termination type.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts from the same manufacturer series. Check for identical pin counts and spacing dimensions. Verify matching termination methods and mounting styles. Ensure equivalent electrical ratings and material compositions.
