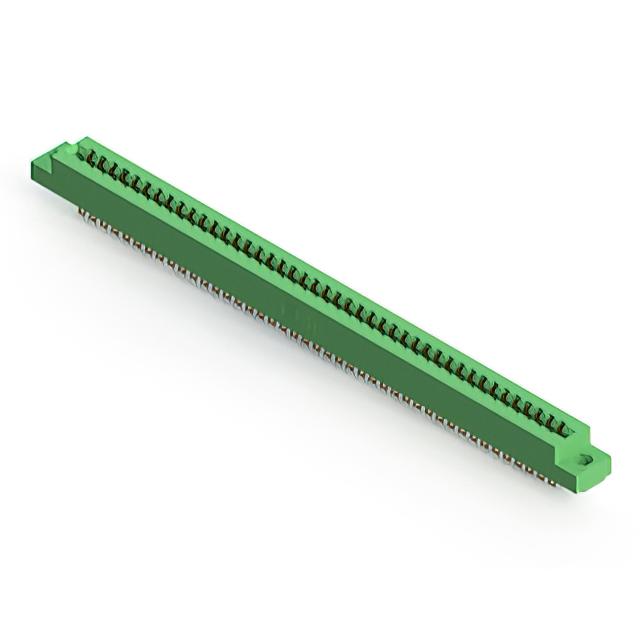

305-086-555-504 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-086-555-504
- Description：CONN EDGE DUAL FMALE 86POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：43
- Number of Positions：86
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-086-555-504
Edgeboard Connectors Overview
The EDAC Inc. 305-086-555-504 is a standard card edge connector receptacle featuring 86 positions arranged in two rows. It utilizes a 3.96 mm (0.156 inch) contact spacing with a 3.56 mm row spacing. Designed for .062 inch nominal thickness printed circuit boards, it employs gold-plated copper alloy contacts and solder termination. The unit operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.
Edgeboard Connectors Feature Summary
- Dual-row female configuration accepting standard .062 inch PCBs
- Gold-plated copper alloy contacts for reliable signal transmission
- Low-profile insulator body design for compact integration
Edgeboard Connectors Applications
- High-density electronic module interconnections
- Industrial control system backplanes
- Telecommunications equipment interfaces
Edgeboard Connectors Procurement Notes
Verify the specific suffix code against the manufacturer datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Cross-reference the RoHS compliance status with current regulatory requirements for the intended market.
Edgeboard Connectors Selection Notes
Select this component when a high-pin-count dual-row interface is required for rigid board connections. The 3.96 mm pitch accommodates standard trace widths while maximizing density. Verify that the straight mounting style aligns with the mechanical enclosure constraints and panel opening dimensions.
Edgeboard Connectors Part Context
This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. The 305 series is characterized by robust construction suitable for repeated mating cycles in demanding environments.
Edgeboard Connectors Replacement Considerations
Direct substitutes include EDAC part numbers 305-086-500-201 and 305-086-555-558, which share similar form factors and pin counts. Verify electrical ratings and mechanical fit before substitution.
