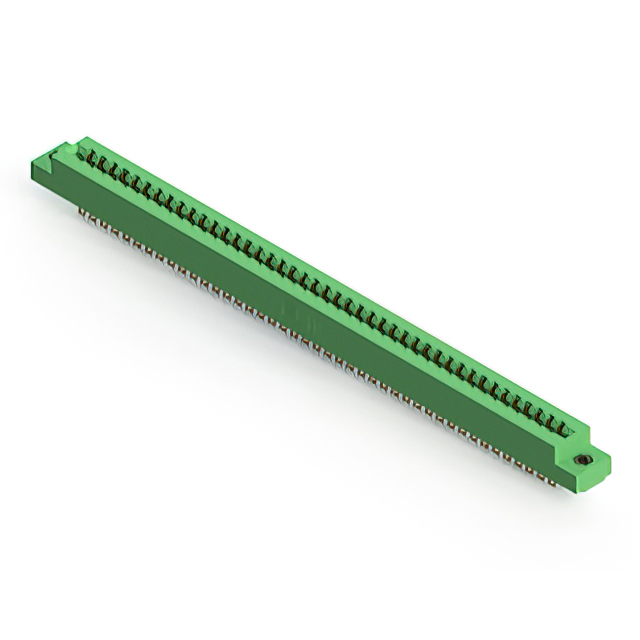

305-086-555-507

$14.91

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:1735b6bdfbad Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-086-555-507 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-086-555-507

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：86
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-086-555-507

305-086-555-507

Edgeboard Connectors Overview

The EDAC Inc. 305-086-555-507 is a standard card edge connector receptacle featuring 86 positions with a 3.96 mm pitch and dual-row configuration. It accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are gold-plated copper alloy, providing a 5 A current rating and 1800 VACrms insulation capability. The housing is green thermoplastic polyester, designed for panel mounting in a vertical orientation.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure board alignment
Gold plating on mating area ensures reliable electrical contact
Dual-edge female design accommodates double-sided PCB traces

Edgeboard Connectors Applications

Industrial control systems requiring high-density interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating and housing color specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the panel mount vertical orientation aligns with the mechanical assembly requirements. Check for availability of compatible polarizing keys if required for the application.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count (86 position) dual-row connector is needed for vertical panel mounting. The 3.96 mm pitch suits applications requiring robust signal integrity with 5 A current capacity. Consider the gold-plated contacts for environments where corrosion resistance is critical. Verify that the green thermoplastic polyester housing meets thermal and chemical resistance standards.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various pin counts and mounting styles, utilizing a consistent 3.96 mm pitch. The 305 series is designed for durability in demanding industrial environments, supporting both single and double-sided PCB designs with reliable solder termination.
