305-086-555-512

Edgeboard Connectors Overview

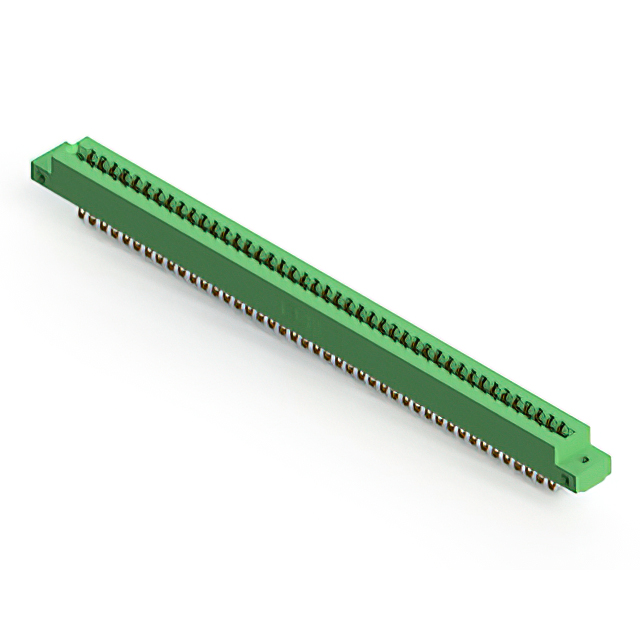

The EDAC Inc. 305-086-555-512 is a standard card edge connector receptacle featuring 86 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and supports a 5 A current rating. Designed for dual-edge mating, the unit accommodates a board thickness of 1.57 mm. The housing is green thermoplastic, ensuring reliable electrical performance in industrial applications.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Green thermoplastic housing for insulation stability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure compatibility with required termination styles and mounting configurations. Confirm that the component meets all necessary environmental certifications for the intended deployment environment before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection is required for double-sided PCBs. Ensure the target circuit board thickness matches the specified 1.57 mm requirement. Verify that the 3.96 mm pitch aligns with the existing mechanical layout constraints of the assembly design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and termination options. This specific model represents a high-pin-count solution designed for robust signal transmission in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Do not assume generic equivalents are compatible without verifying pin count, pitch, and termination specifications.
