305-086-556-201

Edgeboard Connectors Overview

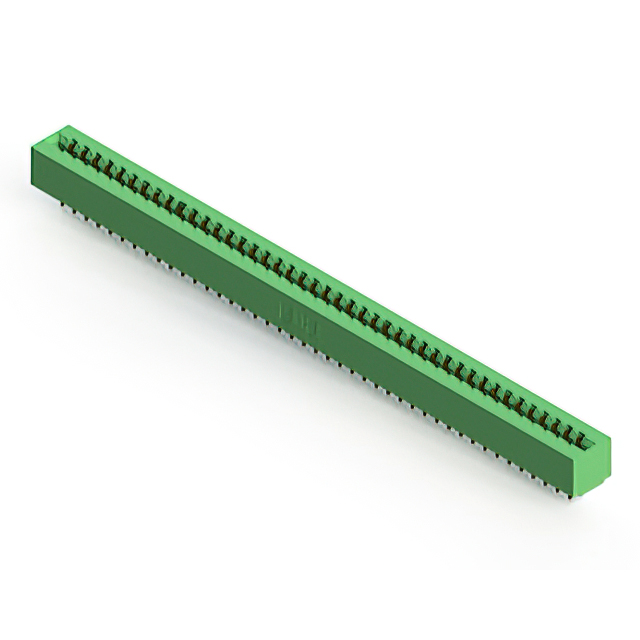

The EDAC Inc. 305-086-556-201 is a standard card edge connector receptacle featuring 86 positions with a 3.96 mm pitch and 0.140 inch row spacing. Designed for dual-edge PCBs with a nominal thickness of 1.57 mm, it utilizes gold-plated copper alloy contacts rated for 5 A current. The component employs solder termination in a straight PCB mount style, operating within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accepting 0.062 inch nominal thickness printed circuit boards
• Gold-plated copper alloy contacts ensure reliable electrical performance
• Straight panel mount configuration for secure PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating, housing material, and termination type match project requirements. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the 86-position layout aligns with the mechanical footprint constraints of the assembly design.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge interface is required for rigid board applications. The 3.96 mm pitch accommodates standard trace widths, while the 5 A rating supports moderate power distribution. Consider the straight mounting angle for vertical board insertion and verify thermal stability requirements against the specified operating temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, designed for robust industrial and commercial applications. The series offers various position counts and mounting styles, providing scalable connectivity solutions. The 305-086-556-201 specifically addresses needs for dense signal routing in constrained spaces.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants such as 305-086-556-204 or 305-086-500-201 for alternative termination or housing configurations. Verify pin count and pitch compatibility before substitution to maintain mechanical and electrical integrity.
