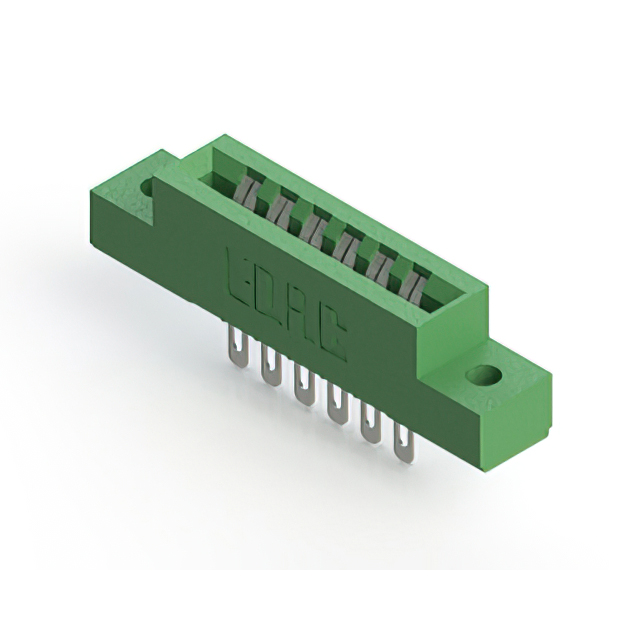

306-006-400-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-006-400-102
- Description：CONN EDGE DUAL FMALE 12POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-006-400-102
Edgeboard Connectors Overview
The EDAC Inc. 306-006-400-102 is a standard card edge connector from the 306 series, designed as a panel-mount header with vertical orientation. It features 12 positions with a 3.96 mm pitch and supports a 1.57 mm board thickness. The contacts are made of copper alloy with tin plating, rated for 5 A current. The housing is constructed from green thermoplastic material.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Thermoplastic housing provides electrical insulation and structural stability
- Panel mount design ensures fixed positioning during operation
Edgeboard Connectors Applications
- Industrial control systems requiring reliable signal transmission
- Communication equipment interface connections
- Automotive electronics module integration
Edgeboard Connectors Procurement Notes
Verify that the specific part number matches the required 12-position count and 3.96 mm pitch before ordering. Confirm that the tin-plated contacts meet the environmental requirements for the intended application. Ensure compatibility with the target PCB thickness of 1.57 mm to guarantee proper mechanical fit and electrical performance.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, dual-edge connector with a 3.96 mm pitch is required. The tin-plated contacts offer cost-effective conductivity suitable for general-purpose applications. Consider the vertical panel mount style if space constraints or mounting orientation dictate a non-through-hole solution.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 306 series, which includes various configurations of standard card edge connectors. The series offers different position counts and mounting styles to accommodate diverse electronic assembly needs while maintaining consistent dimensional standards.
Edgeboard Connectors Replacement Considerations
Compatible substitutes include other EDAC 306 series headers with matching 12-position counts and 3.96 mm pitch. Verify that alternative parts maintain the same dual-edge female contact type and panel mount orientation to ensure interchangeability.
