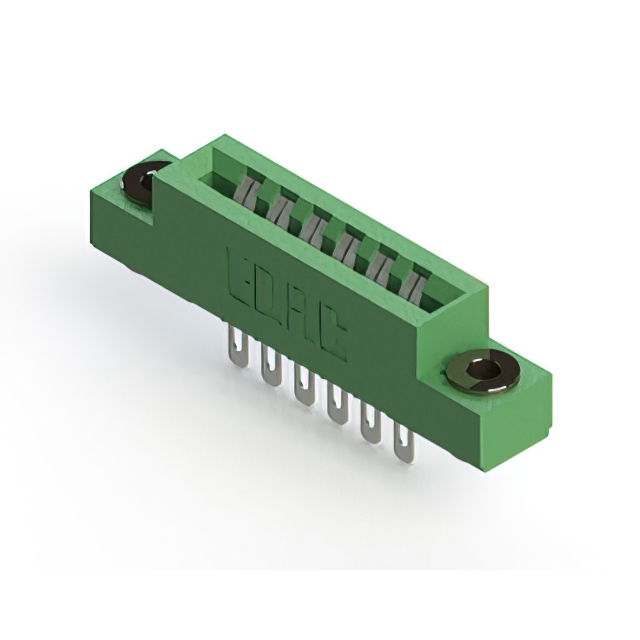

306-006-400-103

$6.82

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:c9a0173de005 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-006-400-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-006-400-103

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-006-400-103

306-006-400-103

Edgeboard Connectors Overview

The EDAC Inc. 306-006-400-103 is a standard card edge connector from the 306 series, designed for vertical panel mounting. It features 12 positions with a 3.96 mm pitch and supports a single row of contacts. The connector utilizes copper alloy terminals with tin plating and a thermoplastic polyester housing. It is rated for 5 A current and offers an insulation resistance of 5 GOhms. The unit operates within a temperature range of -40 C to +105 C and accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

Vertical panel mount configuration for secure installation
Single row contact arrangement with 12 positions
Copper alloy terminals with tin plating for conductivity
Thermoplastic polyester housing material

Edgeboard Connectors Applications

Industrial control systems
Communication equipment
Medical devices
Energy sector applications

Edgeboard Connectors Procurement Notes

Verify the specific plating finish upon ordering, as distributor descriptions may vary between tin and gold options for this part number. Confirm RoHS compliance status directly with the manufacturer or authorized suppliers before procurement. Ensure the selected variant matches the required contact material specifications for your application environment. Cross-reference the datasheet version date to ensure accurate dimensional data.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge interface is required with a 3.96 mm pitch. The 12-position count suits moderate density interconnect needs. Verify that the operating temperature range up to 105 C meets environmental requirements. Ensure the PCB thickness aligns with the 1.57 mm specification for proper mating force and retention.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which provides standard card edge solutions. The series includes various position counts and mounting styles. EDAC, now part of Northern Technologies, manufactures these connectors for diverse industries including consumer electronics and industrial automation. The 306 series emphasizes reliable performance in standard operating conditions.
