306-006-400-104

Edgeboard Connectors Overview

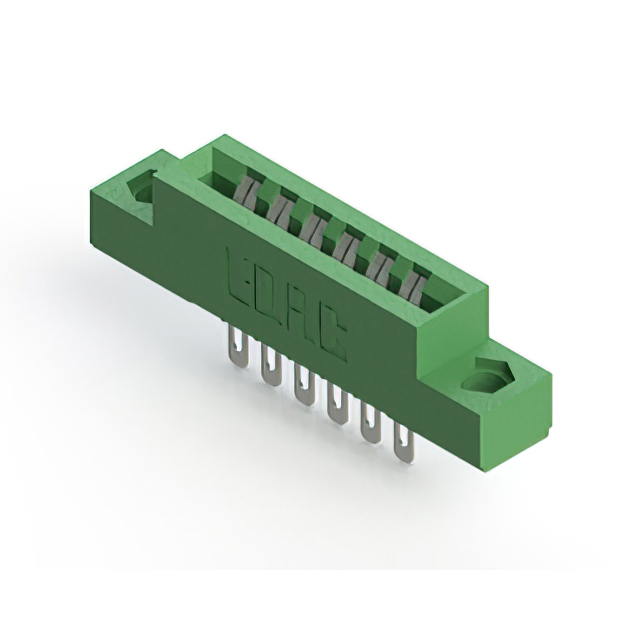

The EDAC Inc. model 306-006-400-104 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. This component features a dual-edge female configuration with 12 positions arranged in a single row. It utilizes a 3.96 mm (0.156 inch) pitch to accommodate standard board thicknesses. The contacts are tin-plated copper alloy, providing corrosion resistance and stable electrical performance. The insulator is constructed from green thermoplastic material, ensuring durability and proper alignment during mating cycles.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board insertion
• Tin-plated copper alloy contacts for corrosion resistance
• Green thermoplastic insulator housing for structural integrity

Edgeboard Connectors Applications

• Industrial control panel interconnections
• Telecommunications equipment backplanes
• Consumer electronics module assembly

Edgeboard Connectors Procurement Notes

Verify the specific contact plating and insulator color requirements against project specifications before procurement. Confirm that the 12-position dual-edge configuration matches the target PCB footprint dimensions. Ensure compatibility with the intended mating card edge thickness and operational temperature range. Cross-reference the manufacturer part number with authorized distributors to confirm current availability status.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface is required for 12-position applications. The 3.96 mm pitch suits standard board thicknesses commonly used in industrial and commercial electronics. Tin plating offers adequate protection for general-purpose environments where gold plating is not strictly necessary. Verify that the vertical mounting style aligns with the enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and configurations for diverse electronic interconnection needs. The 306 series is widely utilized in applications requiring robust mechanical retention and consistent electrical contact. This specific model represents a mid-range position count within the broader product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 12-position dual-edge female specification and 3.96 mm pitch. Verify that alternative components maintain identical mounting styles and contact materials. Ensure that any replacement part meets the same thermal and mechanical performance standards as the original EDAC unit.
