306-006-400-108

Edgeboard Connectors Overview

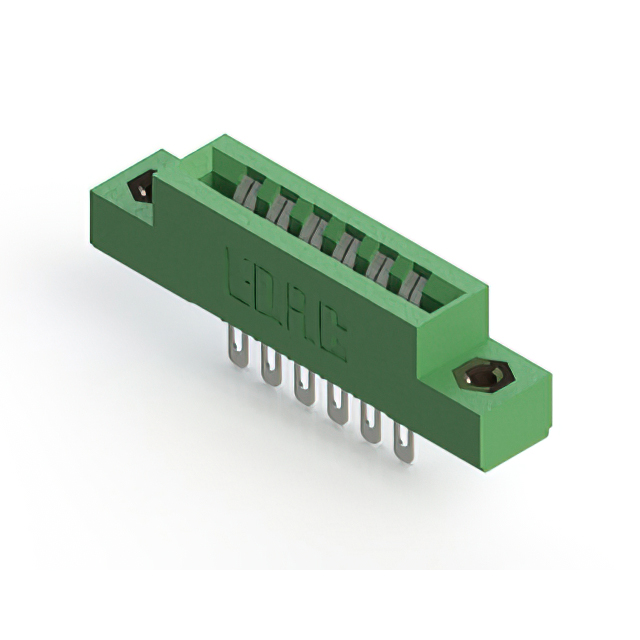

The EDAC Inc. 306-006-400-108 is a standard card edge connector receptacle featuring 6 positions with a 3.96 mm (0.156 inch) pitch. Designed for dual-edge card insertion, it utilizes tin-plated contacts and a green thermoplastic insulator body. The component supports a nominal PCB thickness of 1.57 mm (0.062 inch) and operates within a temperature range of -40°C to +105°C. It offers an insulation resistance of 5000 MOhms and is configured as a single centerline row.

Edgeboard Connectors Feature Summary

• Accepts printed circuit boards with a nominal thickness of 0.062 inches
• Features a low-profile insulator body design
• Utilizes a single centerline row configuration

Edgeboard Connectors Applications

• Electronic interconnect systems requiring dual-edge card mounting
• Industrial control modules utilizing standard board thicknesses
• Communication equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific contact plating specification against official datasheets, as distributor listings may vary between tin and gold options for this series. Confirm that the required application environment aligns with the stated operating temperature limits and insulation resistance values before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a low-profile receptacle is required for dual-edge cards with a 0.062-inch thickness. Ensure the design accommodates the 3.96 mm pitch and single-row layout. Verify compatibility with the intended PCB material and thermal requirements relative to the specified operational temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting styles, offering designers flexibility in tailoring interconnect solutions. The 306-006-400-108 specifically addresses needs for compact, six-position connections in vertical panel or through-hole applications.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitutes within the 306 series. Cross-reference pin count, pitch, and mounting style to ensure mechanical and electrical compatibility without altering the functional interface.
