306-006-400-168

Edgeboard Connectors Overview

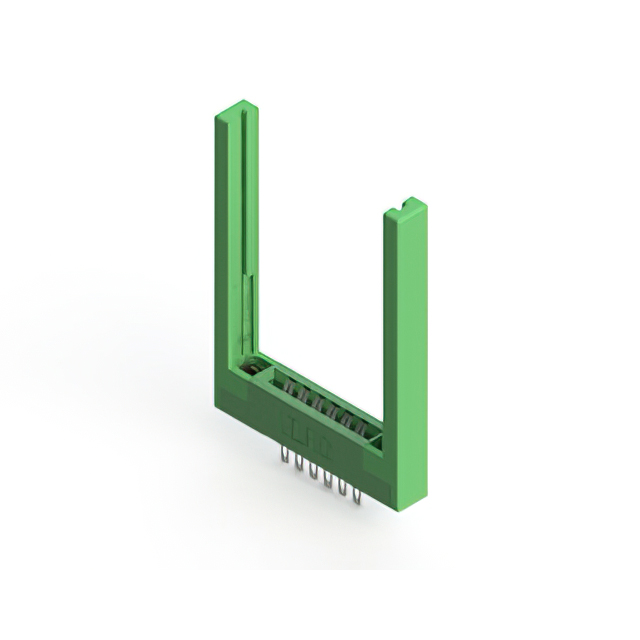

The EDAC Inc. 306-006-400-168 is a single-row card edge connector designed for through-hole panel mounting. It features 6 positions with female contacts and a 0.156-inch (3.96mm) centerline spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a green thermoplastic insulator body, it utilizes tin-plated copper alloy contacts to ensure reliable signal transmission. This component belongs to the 306 series and is rated for an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single centerline row configuration with .156 inch contact spacing
• Accepts .062 inch nominal thickness PCB cards
• Low profile insulator body design

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Communication equipment interface modules
• Consumer electronics internal interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to confirm contact plating and insulation material specifications. Ensure compatibility with the target PCB thickness of 0.062 inches before procurement. Confirm RoHS3 compliance status if required by project regulations. Cross-reference the DigiKey part number 151-306-006-400-168-ND for accurate distributor identification.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, low-profile solution is required for 0.062-inch thick boards. The 0.156-inch spacing accommodates standard trace widths. Verify that the tin plating meets environmental requirements, as gold-plated variants exist within the same series. Ensure the panel mount style aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This component is part of the EDAC 306 Series, which offers various configurations for card edge applications. The series provides options for different row counts, spacing, and plating materials. The 306-006-400-168 specifically addresses needs for compact, single-sided connections in space-constrained environments while maintaining standard industrial temperature ratings.

Edgeboard Connectors Replacement Considerations

Consider the 306-006-400-107 for similar physical dimensions but verify contact plating differences. The 316-006-400-168 offers dual-edge capability with tin plating. Check the 306-007-521-158 for dual-row requirements. Always validate mechanical fit and electrical specs before substitution.
