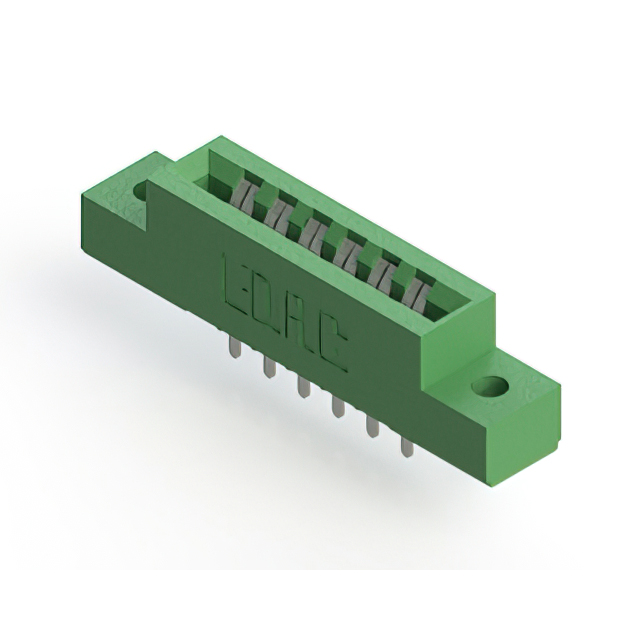

306-006-420-102

$4.94

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:bb31421d4460 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-006-420-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-006-420-102

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-006-420-102

306-006-420-102

Edgeboard Connectors Overview

The EDAC Inc. 306-006-420-102 is a standard card edge connector featuring 6 positions with a 3.96 mm pitch. It utilizes copper alloy contacts plated with tin and has a thermoplastic polyester housing. Designed for dual-edge board insertion, it supports a nominal PCB thickness of 1.57 mm. The component operates within a temperature range of -40°C to +105°C and carries an insulation resistance rating of 5 GOhms.

Edgeboard Connectors Feature Summary

Accepts printed circuit boards with a nominal thickness of 1.57 mm
Features a low-profile insulator body for compact integration
Utilizes single centerline row contact configuration

Edgeboard Connectors Applications

Embedded systems requiring reliable card edge interfaces
Industrial automation control modules
General electronic equipment utilizing standard card edge connections

Edgeboard Connectors Procurement Notes

Verify the specific plating material against official datasheets, as distributor listings may vary between tin and gold finishes for this series. Confirm that the required PCB thickness aligns with the 1.57 mm specification. Ensure the application environment remains within the stated operating temperature limits. Cross-reference the manufacturer part number directly with EDAC documentation to confirm current availability and compliance status before procurement.

Edgeboard Connectors Selection Notes

Select this model when a 6-position interface with a 3.96 mm pitch is required for dual-edge card applications. The thermoplastic polyester housing provides necessary dielectric properties for standard industrial environments. Consider the tin-plated contact option if cost efficiency is prioritized over high-cycle durability, ensuring compatibility with the target PCB fabrication standards.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its .156 inch (3.96 mm) contact spacing and vertical panel mount orientation. These connectors are engineered for robust mechanical retention and electrical stability in modular electronic assemblies.
