Edgeboard Connectors Overview

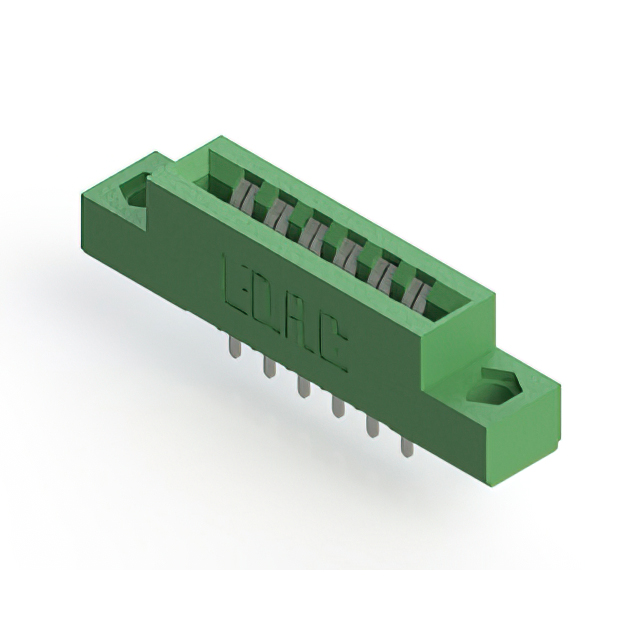

The EDAC Inc. 306-006-420-104 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a dual female configuration with six positions and a pitch of 3.96 mm (0.156 inches). The component supports PCBs with a thickness of 1.57 mm (0.062 inches) and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A current, it employs thermoplastic polyester insulation and solder pin termination for secure board attachment.

Edgeboard Connectors Feature Summary

• Vertical panel mount receptacle design for stable mechanical integration
• Gold-plated copper alloy contacts provide durable electrical connectivity
• Thermoplastic polyester housing ensures robust insulation properties

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Embedded computing module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your PCB layout requirements. Ensure that the selected variant matches the required contact count and pitch specifications. Cross-reference datasheet details regarding termination type and mounting style before finalizing procurement orders to prevent integration errors.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for single-row card edge applications. Confirm that the target PCB thickness aligns with the 1.57 mm specification. Evaluate the 3.96 mm pitch against existing trace routing constraints. Verify that the 5 A current rating meets the circuit's power distribution needs without exceeding thermal limits.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse industrial and commercial interconnect needs. The 306 series is characterized by its reliability in high-vibration environments and consistent performance across standard operating temperatures.

Edgeboard Connectors FAQ

What is the maximum current rating for this connector?

The 306-006-420-104 is rated for a maximum current of 5 A.

Does this connector support double-sided PCBs?

Yes, the dual female configuration allows for connection with double-sided card edge PCBs.
