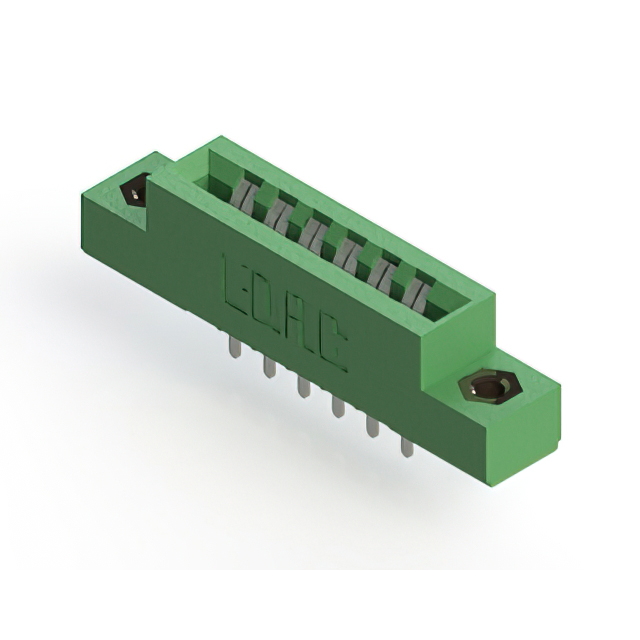

306-006-420-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-006-420-107
- Description：CONN EDGE DUAL FMALE 12POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-006-420-107
Edgeboard Connectors Overview
The EDAC Inc. 306-006-420-107 is a standard card edge connector from the 306 Series, designed for vertical panel mount installation. It features a dual female configuration with 12 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester housing. It supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm) and operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact design for secure board insertion
- Vertical panel mount orientation with flange mounting features
- Tin-plated copper alloy contacts for reliable conductivity
- Green thermoplastic polyester insulation for durability
Edgeboard Connectors Applications
- Industrial control systems requiring robust edge connections
- Communication equipment interface modules
- Automotive electronic circuit boards
- Test and measurement instrumentation backplanes
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm plating type and contact configuration. Ensure compatibility with the target PCB thickness specifications before procurement. Confirm RoHS compliance status through the latest product documentation provided by EDAC Inc.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided card edge connection is required for vertical panel integration. The 0.156-inch pitch suits applications needing wider spacing between contacts. Verify that the tin plating meets the environmental requirements of the intended operating environment compared to gold alternatives.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which offers various configurations of card edge connectors. The series provides options for different position counts and mounting styles. The 306-006-420-107 specifically addresses needs for 12-position dual-edge interfaces in industrial and commercial electronics sectors.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 306 Series ordering guide for direct substitutes with differing position counts or plating options. Cross-reference compatible parts from the same manufacturer family to ensure identical mechanical dimensions and electrical characteristics.
