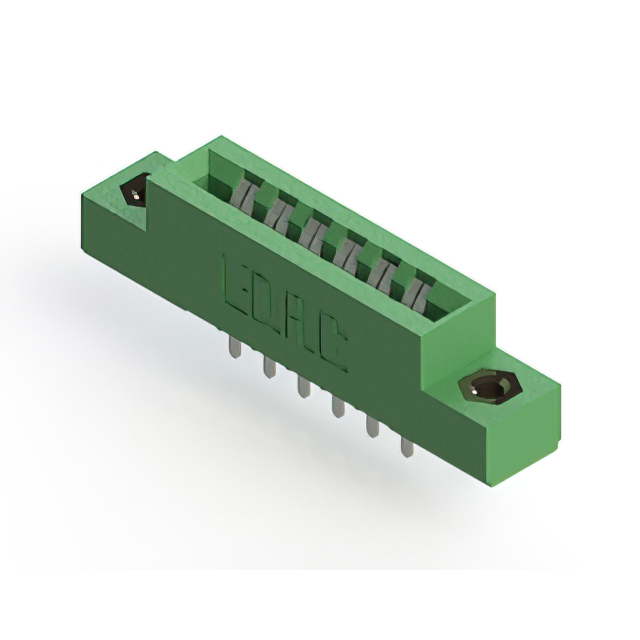

306-006-420-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-006-420-108
- Description：CONN EDGE DUAL FMALE 12POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-006-420-108
Edgeboard Connectors Overview
The EDAC Inc. model 306-006-420-108 is a standard card edge connector receptacle featuring 12 positions with a 3.96 mm (0.156 inch) contact spacing. Designed for dual-edge board insertion, it accommodates a nominal printed circuit board thickness of 1.57 mm (0.062 inch). The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulator body. It supports panel mount installation at a vertical angle and offers an insulation resistance of 5000 MOhms.
Edgeboard Connectors Feature Summary
- Dual-edge female connector design for secure PCB interface
- Vertical panel mount configuration for standardized assembly
- Thermoplastic polyester insulator body for structural stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Edgeboard Connectors Procurement Notes
Verify the specific plating finish against project requirements, as datasheet references may vary between tin and gold options for this series. Confirm that the dual-edge receptacle geometry matches the target PCB card specifications. Ensure the panel mount hole pattern aligns with the mechanical drawing provided in the official EDAC documentation before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a robust, high-current capable connection is required for thick PCBs. The 3.96 mm pitch provides ample spacing for higher voltage isolation compared to finer pitches. Consider the vertical orientation for space-constrained enclosures where front-panel access is necessary. Validate thermal performance within the specified operating temperature range for the intended environment.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, a line of standard card edge connectors known for reliability in harsh environments. The series offers various position counts and termination styles. The 306-006-420-108 specifically addresses applications requiring a 12-position dual-edge interface with durable construction suitable for repeated mating cycles in industrial settings.
Edgeboard Connectors FAQ
What is the maximum operating temperature for this connector?
The connector operates within a temperature range of -40°C to +105°C.
Does this connector support single-sided or double-sided PCB cards?
It is designed as a dual-edge connector, accepting cards with conductive traces on both edges.
