306-006-421-102

Edgeboard Connectors Overview

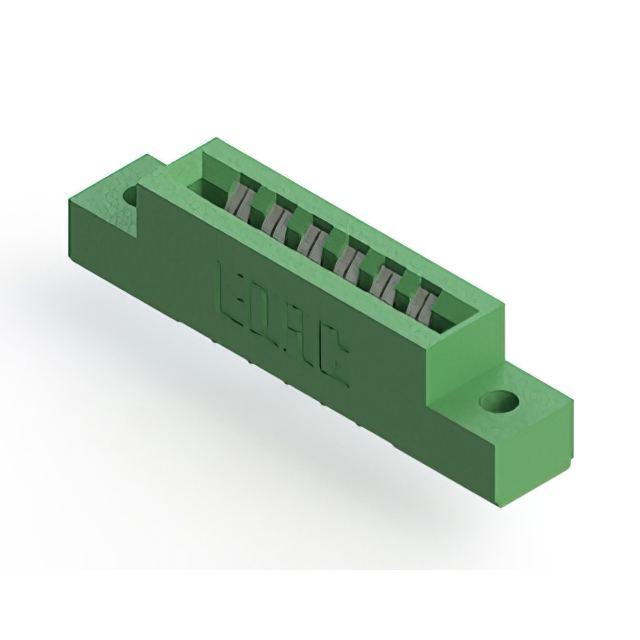

The EDAC Inc. 306-006-421-102 is a standard card edge connector receptacle from the 306 Series. It features 12 positions with a 3.96 mm pitch and supports a nominal PCB thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts with solder pin termination for reliable electrical connection. Designed for panel mount installation at a vertical angle, it operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic polyester, ensuring durability in industrial environments.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure board integration
• Gold-plated contacts ensure stable signal transmission
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm during mechanical integration. Confirm that the vertical mounting style aligns with the enclosure design requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 12-position interface is required with high thermal resistance. The 3.96 mm pitch accommodates standard board layouts while maintaining robust mechanical retention. Verify that the operating temperature range meets the environmental conditions of the intended application site.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting configurations to support diverse electronic assembly needs. Components in this line are engineered for consistent performance across demanding operational scenarios.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 306 Series ordering guide for direct substitutes with differing position counts or termination styles. Cross-reference mechanical dimensions to ensure fitment within existing chassis constraints.
