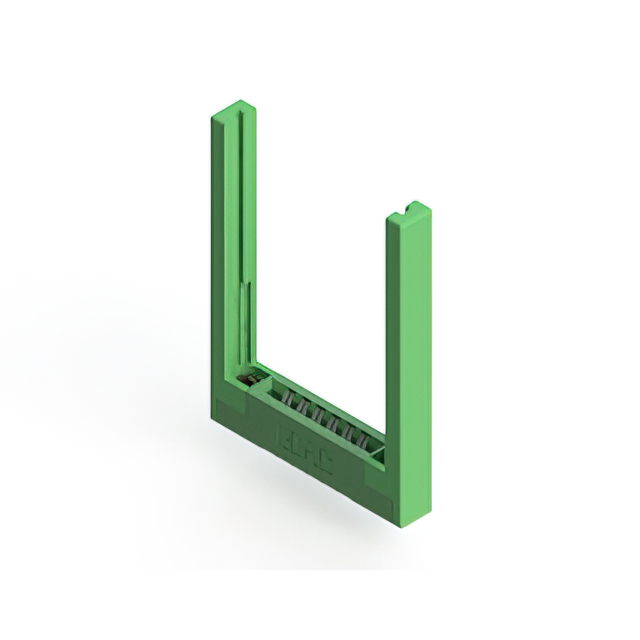

306-006-421-168 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-006-421-168
- Description：CONN EDGE DUAL FMALE 12POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-006-421-168
Edgeboard Connectors Overview
The EDAC Inc. 306-006-421-168 is a standard card edge connector receptacle designed for dual-edge board insertion. It features 12 positions with a 3.96 mm (0.156 inch) pitch and supports PCB thicknesses ranging from 1.37 mm to 1.78 mm. The component utilizes copper alloy contacts with tin plating and employs a solder pin termination method. Constructed with a thermoplastic polyester insulator, it operates within a temperature range of -40°C to +105°C and is rated for panel mount installation.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board retention
- Thermoplastic polyester insulation providing thermal stability
- Tin-plated copper alloy contacts ensuring reliable conductivity
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- General-purpose electronic circuit board mounting
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact plating and housing color specifications. Ensure compatibility with the target printed circuit board thickness and mounting style requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required. Confirm that the application environment falls within the specified -40°C to +105°C operating temperature range and that the panel mount installation style aligns with the mechanical design constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers extensive design options to tailor interconnect requirements, including various contact terminations, mounting styles, and row configurations for diverse electronic applications.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for verified substitute part numbers. Cross-reference position count, pitch, and termination type to ensure functional equivalence.
