306-006-500-101

Edgeboard Connectors Overview

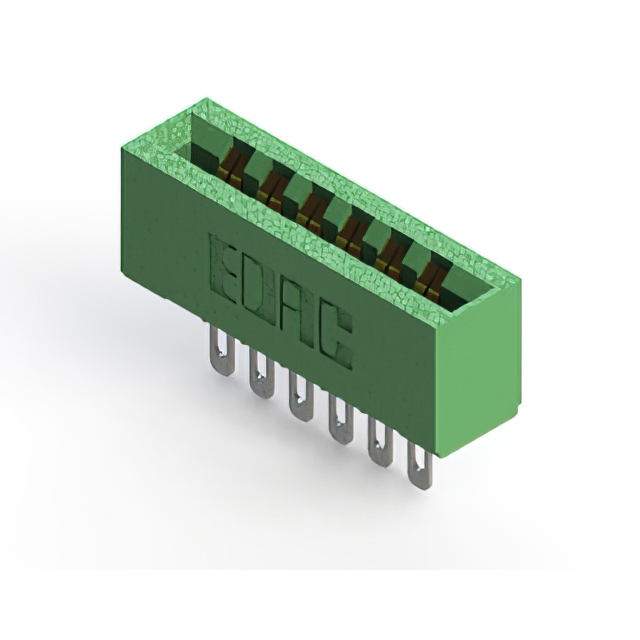

The EDAC Inc. 306-006-500-101 is a standard card edge connector from the 306 Series, designed for panel mount applications. It features a dual female configuration with six positions and a contact spacing of 0.156 inches (3.96mm). The connector utilizes hole-type contacts with gold plating on the contact area, housed in a green thermoplastic polyester insulator. It supports card thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female edgeboard connector design for reliable signal transmission
• Gold-plated hole-type contacts ensure low resistance and durability
• Green thermoplastic polyester insulation provides thermal stability
• Panel mount installation with flange characteristics for secure positioning

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Consumer electronics internal module interfaces
• Automotive electronic control unit linkages

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to confirm exact pin count, contact type, and packaging details. Ensure compatibility with target PCB edge thickness and mounting hole dimensions before procurement. Cross-reference the DigiKey part number 151-306-006-500-101 for accurate sourcing channels and lead times.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector with 0.156-inch spacing is required for panel-mounted applications. Consider the gold plating for corrosion resistance and the operating temperature range for environmental suitability. Verify that the target card thickness falls within the specified 0.054 to 0.070-inch range for proper contact engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series of standard card edge connectors, which are widely used in various electronic assemblies. The series offers multiple position options and contact configurations to suit different interface needs. The 306-006 variant specifically addresses requirements for six-position dual-edge connections with standardized spacing.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 306 Series parts with identical spacing and position counts but different contact types or plating. Verify mechanical fit and electrical specifications before replacing with generic equivalents from other manufacturers.
