306-006-500-102

Edgeboard Connectors Overview

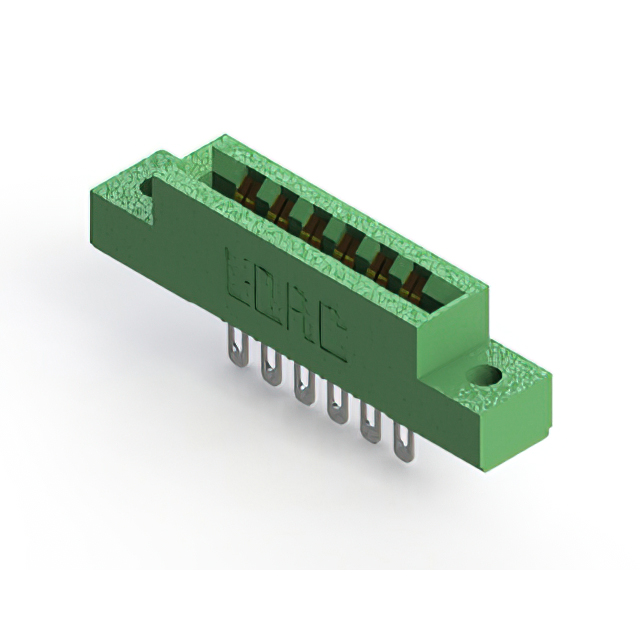

The EDAC Inc. 306-006-500-102 is a standard card edge connector designed for panel mounting applications. It features a dual female configuration with 12 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts featuring gold plating, the unit provides reliable electrical performance within an operating temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration ensures secure connection with double-sided card edges.
• Gold-plated copper alloy contacts provide durable conductivity and corrosion resistance.
• Low-profile thermoplastic insulator body supports vertical panel mounting.
• Accepts standard 1.57 mm nominal thickness PCBs for consistent mechanical fit.

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Test and measurement instrument cards

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target PCB thickness and mounting requirements. Ensure that the procurement channel sources genuine components to guarantee adherence to specified material standards and environmental ratings. Cross-reference the series designation to confirm alignment with existing system design parameters before finalizing acquisition.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for panels utilizing 1.57 mm thick circuit boards. The 3.96 mm pitch accommodates standard board layouts while the gold finish offers long-term reliability in demanding environments. Confirm that the vertical mounting style and low-profile housing meet the spatial constraints of the intended enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, which encompasses a range of standard card edge connectors. The series is characterized by robust construction suitable for high-reliability applications. The 306-006-500-102 variant specifically addresses needs for dual-row connections with defined spacing and thickness tolerances, fitting into broader industrial interconnect ecosystems.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306/316/356 Series Ordering Guide for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and PCB thickness acceptance criteria to preserve mechanical and electrical integrity within the assembly.
