306-006-500-104

Edgeboard Connectors Overview

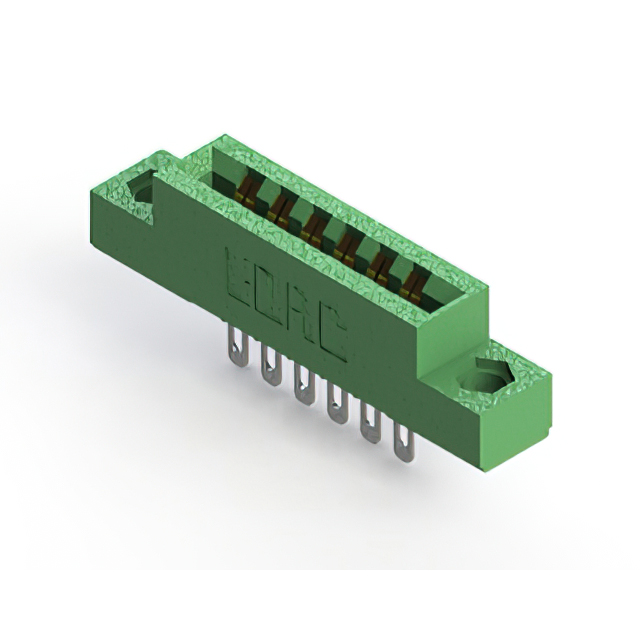

The EDAC Inc. 306-006-500-104 is a standard card edge connector designed for panel mounting with through-hole termination. It features a dual row configuration with six positions and a contact spacing of 0.156 inches (3.96mm). The connector utilizes female, cantilever contacts with gold plating to ensure reliable signal transmission. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The insulator body is constructed from green thermoplastic polyester, providing durability in operating temperatures ranging from -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual row female connector design accommodating non-specified single-sided or double-sided edge cards
• Gold-plated cantilever contacts ensure low insertion force and high cycle durability
• Flush mount flange with top opening facilitates secure panel installation without threading
• Thermoplastic polyester insulator provides thermal stability across a wide temperature range

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Test and measurement instrument input/output panels
• Embedded computing board interconnections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 306 Series Ordering Guide to confirm contact length, insulation color, and mounting style. Ensure the target PCB thickness falls within the specified acceptance range of 0.062 inches nominal. Confirm RoHS compliance status if required by project specifications, as variations may exist within the series. Cross-reference the manufacturer part number with distributor codes to avoid substitution errors during procurement.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, dual-row card edge interface is required for panel-mounted applications. The 0.156-inch pitch suits general-purpose digital signal routing where higher density is not critical. Consider the flush mount feature for applications requiring a flat exterior surface profile. Evaluate the thermal rating against the operational environment to ensure performance within the -40°C to 105°C range.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, a line of standard card edge connectors known for robust mechanical design and versatile mounting options. The series offers various position counts and contact configurations to support diverse electronic assembly needs. The 306-006 variant specifically addresses requirements for compact, six-position dual-row connections in industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include the 306-009-500-104 for nine positions or the 306-003-500-104 for three positions, maintaining identical pitch and mounting characteristics. For different contact spacings, the 846 series offers alternative pitches but requires verification of mechanical compatibility.
