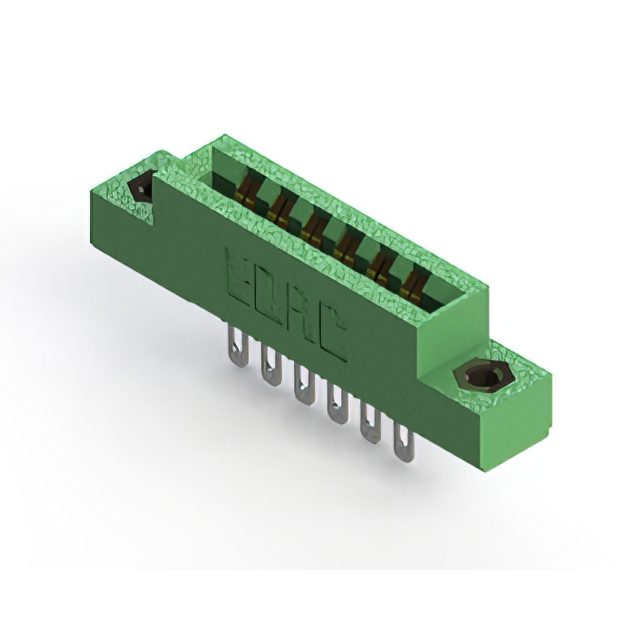

306-006-500-107

$6.82

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:ad4b007d318f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-006-500-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-006-500-107

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-006-500-107

306-006-500-107

Edgeboard Connectors Overview

The EDAC Inc. 306-006-500-107 is a standard card edge connector receptacle from the 306 Series. It features six positions with a 3.96 mm (0.156 inch) pitch and supports a single row of contacts. Designed for panel mount installation at a vertical angle, it accommodates a board thickness of 1.57 mm. The contacts are gold-plated copper alloy with a 5 A current rating, utilizing solder pin termination. The housing is constructed from thermoplastic polyester.

Edgeboard Connectors Feature Summary

Vertical panel mount configuration for secure structural integration
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester insulator provides durable electrical isolation

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact count, plating thickness, and termination style match project requirements. Confirm RoHS compliance status through official manufacturer documentation prior to procurement. Ensure panel cutout dimensions align with the specified 1.57 mm board thickness tolerance for proper mating engagement.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row card edge interface is required for moderate current applications. The 3.96 mm pitch offers a balance between density and spacing reliability. Consider the vertical mounting orientation for space-constrained enclosures where direct board-to-board connection is not feasible.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, a line of standard card edge connectors designed for general-purpose electronic applications. The series offers various position counts and mounting options, providing flexibility for different PCB layout requirements while maintaining consistent mechanical and electrical performance standards across the product family.
