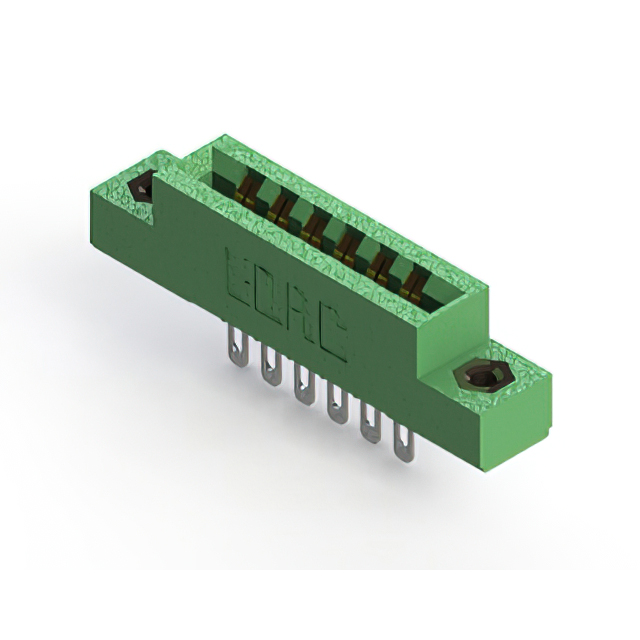

306-006-500-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-006-500-108
- Description：CONN EDGE DUAL FMALE 12POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-006-500-108
Edgeboard Connectors Overview
The EDAC Inc. model 306-006-500-108 is a standard card edge connector featuring dual female contacts with a .156 inch (3.96mm) centerline spacing. It accommodates printed circuit boards with a nominal thickness of .062 inches (1.57mm). The unit utilizes gold-plated copper alloy contacts and a green diallyl phthalate insulator body. Designed for through-hole vertical mounting, this single-row receptacle provides reliable interconnection in high-temperature environments.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure board retention
- Gold-plated contacts ensure reliable signal transmission
- Green diallyl phthalate insulator supports high-temperature operation
Edgeboard Connectors Applications
- Computing and storage systems
- Medical equipment interfaces
- Industrial control modules
Edgeboard Connectors Procurement Notes
Verify the specific part number against official EDAC documentation to confirm contact count and termination style. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference datasheets for environmental ratings and material specifications to guarantee suitability for the intended application environment.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge card interface with .156 inch spacing is required. Consider the through-hole vertical mounting style and the specific board thickness tolerance. Evaluate the high-temperature rating and gold plating for durability in demanding operational conditions compared to alternative series options.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various configurations for computing, medical, and industrial sectors. EDAC provides comprehensive interconnect solutions with rigorous quality assurance protocols to support global OEM distribution channels.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified equivalent part numbers. Ensure mechanical dimensions, electrical ratings, and mounting styles match exactly before replacing the original component.
