306-006-520-101

Edgeboard Connectors Overview

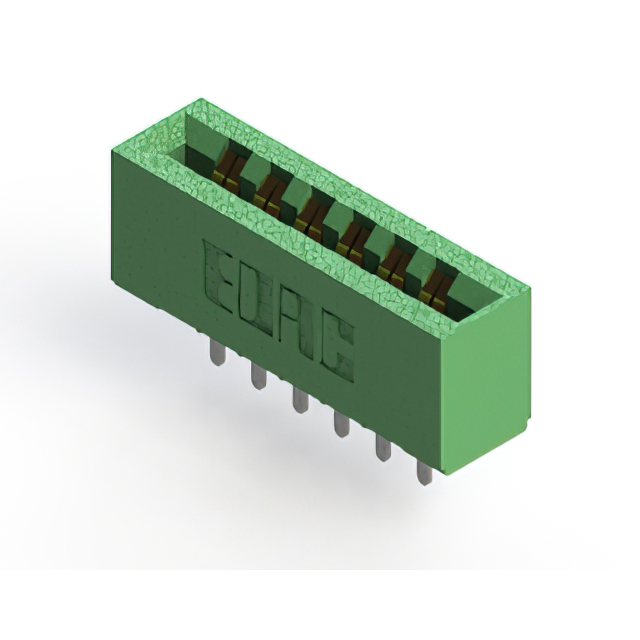

The EDAC Inc. 306-006-520-101 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a dual-edge female configuration with 6 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes cantilever contacts made of copper alloy with a gold finish to ensure reliable signal transmission. It supports a current rating of 5 A and operates within a temperature range of -65°C to 125°C. The insulator is green thermoplastic, providing an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

• Dual-edge female design with cantilever contacts for secure board insertion
• Gold-plated copper alloy contacts ensuring corrosion resistance and conductivity
• Vertical panel mount style for stable structural integration
• Green thermoplastic insulator housing with specified thermal operating limits

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics module interfaces
• Medical device circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination type, and plating specifications. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Confirm regional availability and shipping restrictions as distribution status may vary by location.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 0.156-inch spacing is required for vertical panel mounting. Consider the 5 A current rating and -65°C to 125°C operating range for environmental suitability. Verify that the cantilever contact type matches the mechanical requirements of the mating card edge interface.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are widely used in various electronic assemblies. The series offers multiple position counts and spacing options to accommodate different board densities. The 306-006-520-101 specifically addresses needs for compact, reliable connections in industrial and commercial applications requiring robust electrical performance.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides or cross-reference databases for verified equivalent parts. Ensure any substitute maintains identical contact spacing, current rating, and mounting style. Verify material compatibility and dimensional tolerances to prevent assembly issues.
