306-006-520-104

Edgeboard Connectors Overview

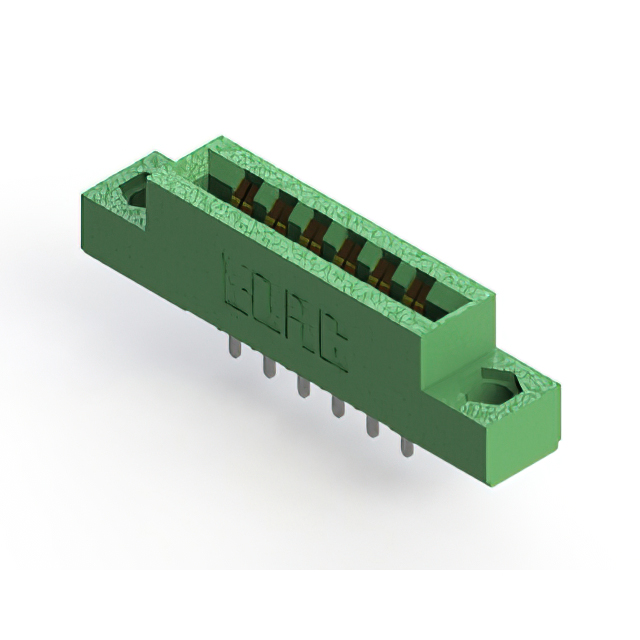

The EDAC Inc. model 306-006-520-104 is a standard card edge connector designed for dual-edge female applications. It features 12 positions arranged in two rows with a pitch of 0.156 inches (3.96 mm). The connector supports a maximum board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A current, it offers an insulation resistance of 5 GOhms. The housing is constructed from thermoplastic material, providing durability for panel mount installations at a vertical angle.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic housing for structural integrity
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Industrial control systems requiring robust edge connections
• Telecommunications equipment interface modules
• Medical device internal circuit board interconnects
• Consumer electronics manufacturing test fixtures

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact plating thickness and housing color variations. Ensure the selected variant matches the required operating temperature range and current rating for your specific application environment. Cross-reference the pin count and row configuration with your PCB design specifications before finalizing the purchase order to avoid compatibility issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 12-position connection is required with a 3.96 mm pitch. Consider the 5 A current rating and 5 GOhms insulation resistance for standard industrial environments. Verify that the 1.57 mm board thickness tolerance aligns with your printed circuit board manufacturing capabilities. Choose this series if vertical panel mounting and thermoplastic durability are primary design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and row configurations to support diverse interface needs. The 306 series is characterized by its use of thermoplastic housings and gold-plated contacts, offering a balance of performance and cost-effectiveness for general-purpose electronic interconnections across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for direct substitutes. Verify that any alternative part maintains the same 3.96 mm pitch, 12-position count, and dual-edge female configuration. Ensure mechanical dimensions and mounting styles are compatible with existing panel cutouts and PCB layouts.
