306-006-520-108

Edgeboard Connectors Overview

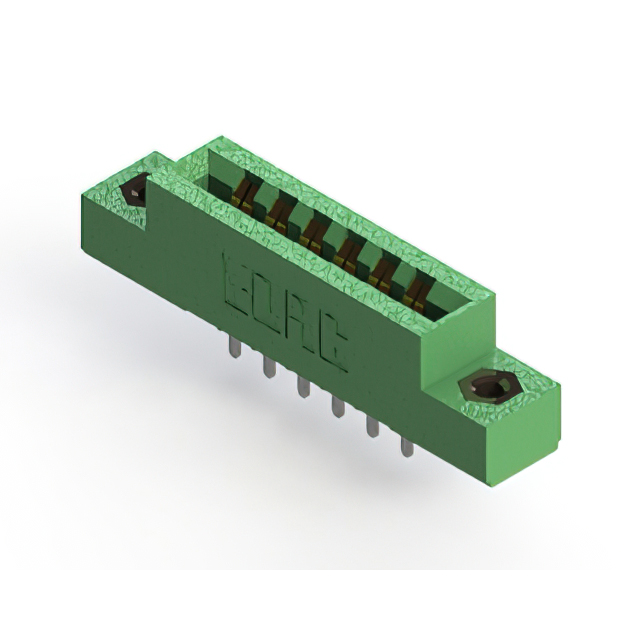

The EDAC Inc. 306-006-520-108 is a standard card edge connector from the 306 Series, designed for dual-edge board connections. It features 12 positions with a contact spacing of 0.156 inches (3.96mm) and a row spacing of 0.200 inches (5.08mm). The connector utilizes tail-type contacts with gold plating on the contact area to ensure reliable signal transmission. The insulator body is green, providing visual identification and environmental protection. This component is engineered for surface-mount or through-hole integration into electronic assemblies requiring secure card edge interfacing.

Edgeboard Connectors Feature Summary

• Dual female connector configuration for secure card edge mating
• Gold-plated tail-type contacts for enhanced conductivity and corrosion resistance
• Green insulator body for standard visual identification

Edgeboard Connectors Applications

• Industrial control system circuit boards
• Communication equipment interface modules
• Consumer electronics internal connectivity

Edgeboard Connectors Procurement Notes

Verify the manufacturer part number 306-006-520-108 against official EDAC documentation to confirm specifications. Ensure compatibility with target PCB design regarding contact spacing and mounting requirements. Check for RoHS compliance details in the latest datasheet. Confirm availability status directly with authorized distributors as stock levels fluctuate. Validate that the dual-edge female configuration matches the intended application needs.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge card interface with 12 positions is required. The 0.156-inch spacing defines the compatible card edge width. Gold plating is suitable for applications demanding low contact resistance. The tail-type termination method dictates the specific PCB footprint and soldering process. Ensure the green insulator color meets any aesthetic or identification standards of the final assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series of standard card edge connectors. The series offers various position counts and spacing options to support diverse electronic design requirements. EDAC manufactures these connectors for use in communication, industrial, and consumer applications. The 306-006-520-108 specifically addresses the need for a 12-position dual-edge solution within this product line.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Ensure replacement parts match the 0.156-inch spacing and 12-position count. Verify identical termination type and plating specifications before substitution.
