306-006-520-112

Edgeboard Connectors Overview

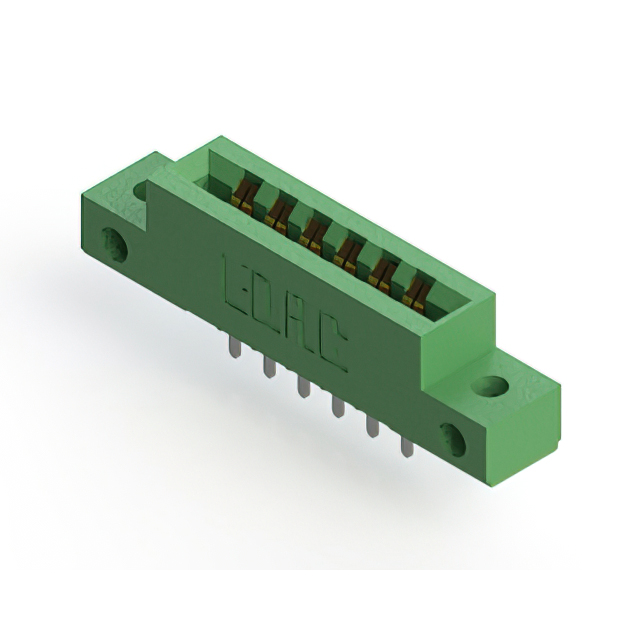

The EDAC Inc. 306-006-520-112 is a standard card edge connector designed for vertical panel mounting applications. It features a single centerline row with 12 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, rated for 5 A current. The insulator body is green thermoplastic, providing low profile construction suitable for dense electronic assemblies.

Edgeboard Connectors Feature Summary

• Single centerline row configuration for simplified board layout
• Gold-plated contacts ensure reliable signal transmission
• Low profile insulator body reduces overall assembly height
• Vertical orientation supports secure panel mounting

Edgeboard Connectors Applications

• Industrial control systems requiring robust I/O connections
• Telecommunications equipment interface modules
• Medical device internal circuit board interconnects
• Consumer electronics mainboard expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications. Ensure the target PCB thickness matches the 0.062-inch design requirement. Confirm that the vertical panel mount style aligns with the mechanical enclosure constraints. Cross-reference the 12-position count against the schematic requirements to prevent mismatched pin counts during integration.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 3.96 mm pitch connection is required. The 5 A rating suits moderate power distribution needs. The vertical form factor dictates the mounting orientation relative to the chassis. Verify compatibility with the mating card edge thickness before finalizing the design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts while maintaining consistent 3.96 mm spacing. The 306 series is widely used in general-purpose electronic applications where reliable vertical interconnection is necessary.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different suffixes for color or plating variations. Verify mechanical dimensions and electrical ratings before swapping with other manufacturers' equivalents.
