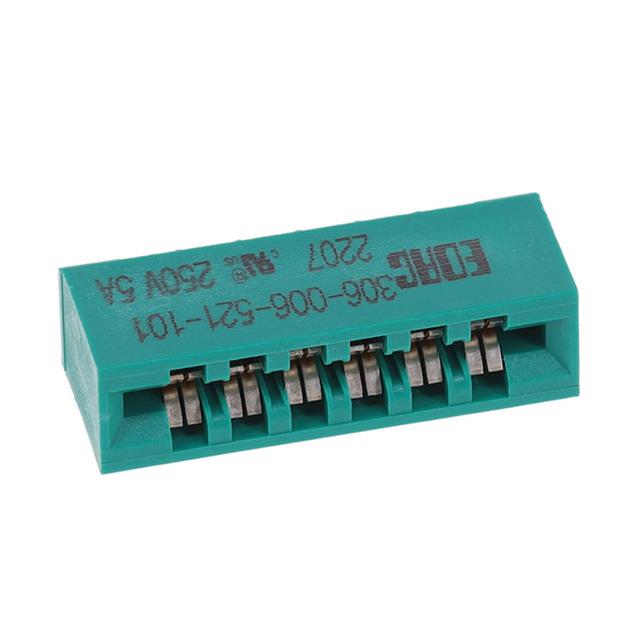

306-006-521-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-006-521-101
- Description：CONN EDGE DUAL FMALE 12POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-006-521-101
Edgeboard Connectors Overview
The EDAC Inc. 306-006-521-101 is a dual-edge female card edge connector designed for through-hole mounting. It features 12 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator body. It is engineered to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm), providing reliable electrical interconnection for edgeboard applications.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for secure board insertion
- Gold-plated copper alloy contacts for conductivity
- Green thermoplastic polyester insulator body
- Through-hole straight mount design
Edgeboard Connectors Applications
- Edgeboard interconnections
- Printed circuit board mounting
- Backplane connectivity systems
Edgeboard Connectors Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm pin count, contact plating, and board thickness compatibility. Ensure the ordering suffix matches the required specifications. Cross-reference datasheets for mechanical dimensions and material composition before procurement to avoid mismatches.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge female connector with 12 positions and 0.156-inch spacing is required. Confirm that the target PCB thickness aligns with the 0.062-inch specification. Evaluate the through-hole mounting style and straight orientation against the assembly constraints. Verify insulation material and contact plating requirements for the intended environment.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 306 series of edgeboard connectors. The series offers various configurations for single and dual-edge applications. The 306-006-521-101 specifically addresses needs for dual-edge interfaces with standard spacing. It serves as a standardized solution for connecting edgeboards to main circuit assemblies in electronic systems.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternative part numbers. Do not assume generic equivalents are compatible without verifying mechanical fit and electrical ratings. Check for updated series revisions or superseded models in the manufacturer's current catalog.
