306-006-521-102

Edgeboard Connectors Overview

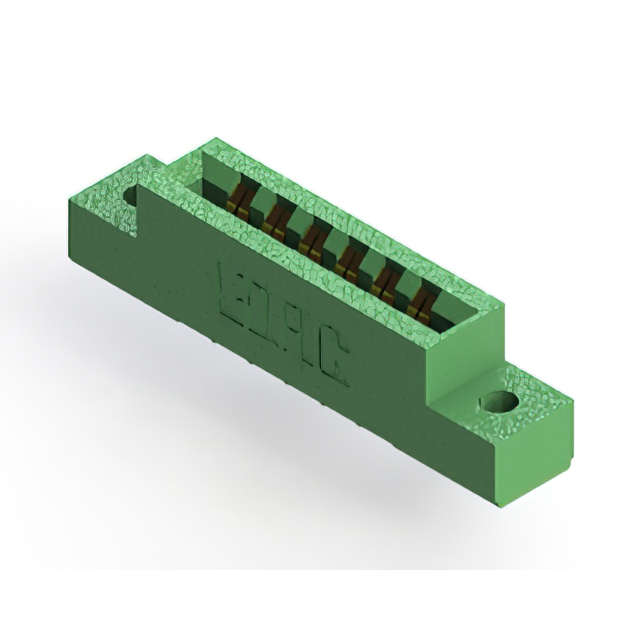

The EDAC Inc. 306-006-521-102 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. This receptacle features 12 positions arranged in a dual-row configuration with a contact spacing of 0.156 inches (3.96 mm). It utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and employs a solder termination method for secure mounting.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating standard card edge PCBs
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Low-profile insulator body constructed from thermoplastic material
• Vertical panel mount style for stable structural integration

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Test and measurement instrument cards
• Embedded computing hardware interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm pin count, plating type, and board thickness compatibility. Ensure the procurement specification matches the required dual-row configuration and vertical orientation. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability status and RoHS compliance documentation prior to finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 0.156-inch pitch is required for vertical panel mounting. Confirm that the target PCB thickness aligns with the 0.062-inch nominal specification. Evaluate the operating temperature range and current rating requirements against the connector's electrical specifications to ensure suitability for the intended application environment and signal integrity needs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and row configurations to support diverse electronic interconnection needs. The 306 series is characterized by its robust construction and compatibility with standard manufacturing processes, providing a versatile solution for connecting edgeboard circuits to host systems in demanding operational environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical contact spacing, row configuration, and mounting style. Verify that alternative components meet or exceed the original electrical ratings and environmental specifications before implementation.
