306-006-521-107

Edgeboard Connectors Overview

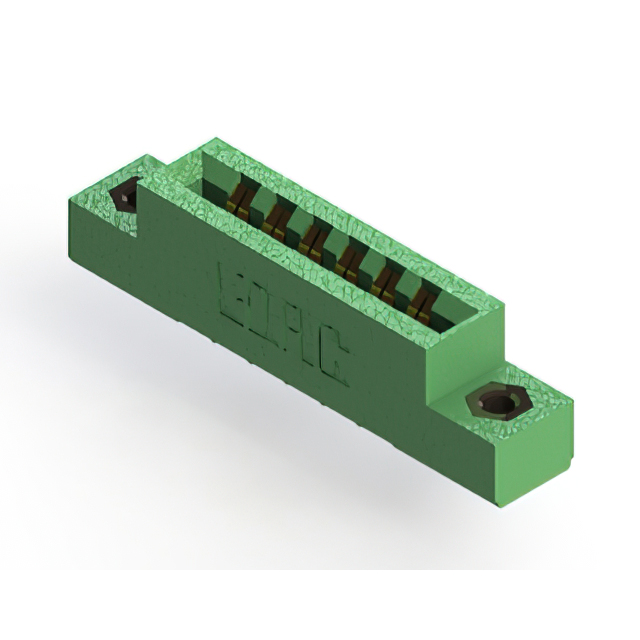

The EDAC 306-006-521-107 is a standard card edge connector from the 306 series, featuring a single central row with six positions. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The unit employs gold-plated copper alloy contacts housed in a green thermoplastic insulator body. Designed for flush mounting with top-opening threaded inserts compatible with M3 fasteners, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single central row configuration with low-profile insulator body
• Flush mounting style with top-opening threaded insert design
• Gold-plated copper alloy contacts for reliable signal transmission
• Compatible with standard 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control panel interconnections
• Telecommunications equipment backplanes
• Consumer electronic module interfaces
• Medical device internal board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure alignment with required termination types and mounting hardware specifications. Confirm that the thermal rating and insulation resistance meet the target application's environmental constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, flush-mount card edge interface is required for 0.062 inch thick boards. Ensure the mechanical clearance accommodates the top-opening threaded insert design and verify that the operating temperature range suffices for the intended deployment environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, characterized by 0.156 inch pitch and single-row configurations. The series provides various position counts and mounting options for general-purpose electronic interconnect applications requiring robust panel or flush-mounted solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series variants sharing identical pitch and row count. Verify mechanical footprint compatibility and electrical ratings before substituting with alternative manufacturers' single-row card edge connectors.
