306-006-521-112

Edgeboard Connectors Overview

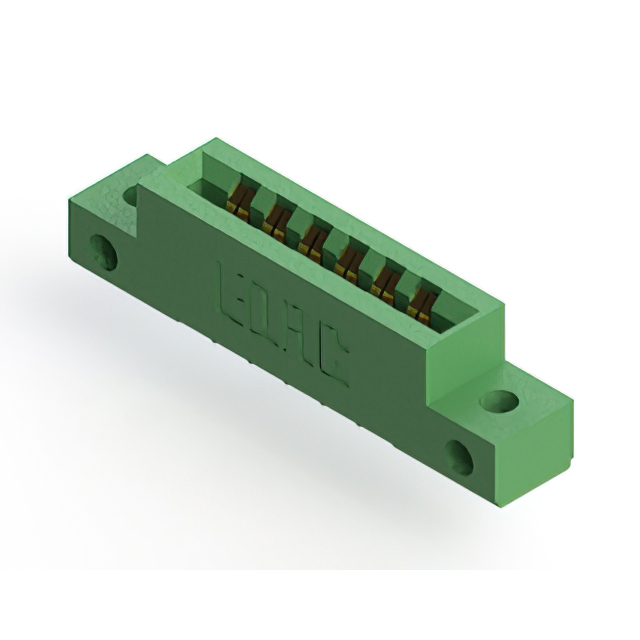

The EDAC Inc. 306-006-521-112 is a standard card edge connector designed for single-row PCB applications. It features a contact spacing of 3.96 mm (0.156 inches) and accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). The component utilizes a low-profile insulator body to minimize vertical space requirements within electronic assemblies.

Edgeboard Connectors Feature Summary

• Single centerline row configuration for simplified routing
• Low profile insulator body design
• Accepts 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• General purpose electronic interconnects
• Industrial control systems
• Consumer electronics assembly

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct pin count, termination style, and plating specifications. Confirm RoHS compliance status and environmental ratings prior to integration into final designs.

Edgeboard Connectors Selection Notes

Select this component when a single-row connection with 3.96 mm spacing is required. Ensure the target PCB thickness matches the 1.57 mm specification. Consider the low-profile form factor for space-constrained layouts requiring reliable card-edge mating.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various configurations for different board thicknesses and contact spacings, serving as a foundational interconnect solution for general-purpose electronic hardware applications.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct replacements. Verify that any alternative maintains identical 3.96 mm spacing, single-row topology, and compatible PCB thickness tolerance.
