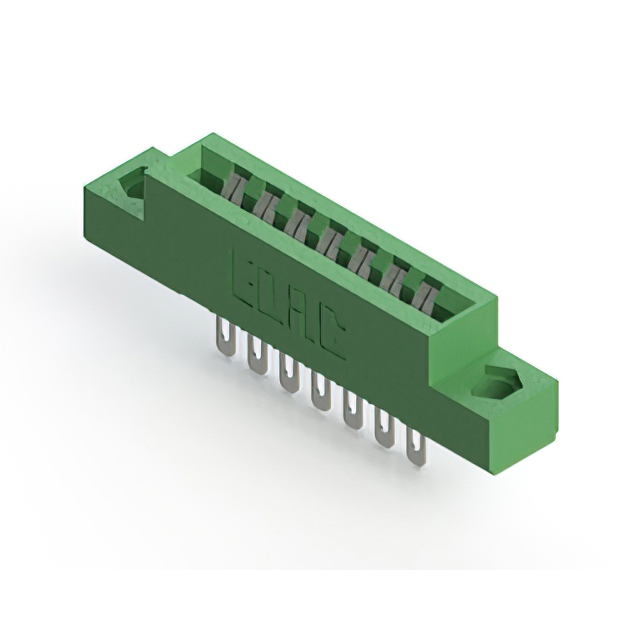

306-007-400-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-007-400-104
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-007-400-104
Edgeboard Connectors Overview
The EDAC Inc. 306-007-400-104 is a standard card edge connector receptacle designed for vertical panel mount applications. It features 14 positions with a 0.156 inch (3.96 mm) pitch and accepts dual-edge PCBs of non-specified type. The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulator body. Rated for 5 A current, it supports nominal board thicknesses of 0.062 inches (1.57 mm). Operating temperatures range from -40°C to 105°C, ensuring reliable performance in industrial environments.
Edgeboard Connectors Feature Summary
- Accepts nominal 0.062 inch thick printed circuit boards
- Low profile insulator body construction
- Single centerline row contact configuration
Edgeboard Connectors Applications
- Industrial control systems
- Communication equipment
- Test and measurement instruments
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact finish and plating specifications. Ensure the selected variant matches the required PCB thickness tolerance and mounting style. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, single-row female connector is required for dual-edge card applications. Confirm that the 0.156 inch pitch aligns with the target PCB layout. Verify that the tin contact finish meets the environmental and conductivity requirements for the intended signal transmission paths.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which provides standard card edge connectors for various industrial applications. The series offers multiple position counts and mounting options to accommodate diverse design constraints while maintaining consistent electrical performance and mechanical reliability standards.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 306 Series ordering guide for confirmed substitute part numbers. Verify compatibility regarding pin count, pitch, and mounting style before implementing any alternative components.
Edgeboard Connectors FAQ
What is the nominal PCB thickness supported by this connector?
The connector accepts a nominal printed circuit board thickness of 0.062 inches (1.57 mm).
Does this connector support dual-edge cards?
Yes, the 306-007-400-104 is designed for non-specified dual-edge card types.
