306-007-400-112

Edgeboard Connectors Overview

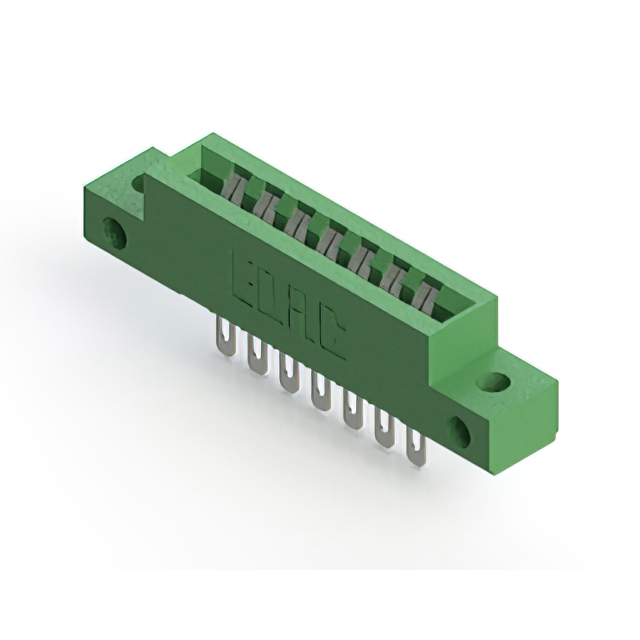

The EDAC Inc. 306-007-400-112 is a dual-edge female card edge connector designed for panel mount installation. It features 14 positions with a 0.156-inch (3.96mm) pitch and utilizes solder eyelet termination. The contacts are made of copper alloy with a tin finish, housed in green thermoplastic polyester insulation. It supports board thicknesses from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle configuration for non-specified card types
• Panel mount design with flange features for secure installation
• Solder eyelet termination method for reliable circuit attachment

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific contact plating requirement, as datasheets may list tin or gold finishes for this series. Confirm that the target PCB thickness falls within the 0.054 to 0.070 inch specification. Ensure the mounting hole diameter matches the flange requirements for proper panel alignment. Check RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. The panel mount style suits applications needing direct chassis integration. Verify that the solder eyelet termination aligns with the assembly process capabilities. Consider the operating temperature range and insulation material properties for environmental suitability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series of standard card edge connectors. The series offers various position counts and termination styles. The 306-007-400-112 specifically provides a 14-position configuration with panel mount capabilities. It is designed for general-purpose electronic interconnection needs.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available for this discontinued or specific variant. Cross-reference with other EDAC 306 series parts only if electrical and mechanical parameters match exactly.
