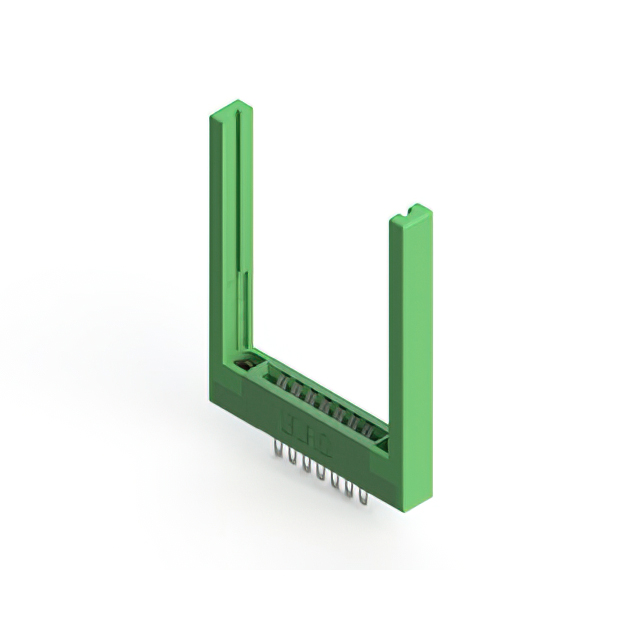

306-007-400-168

$8.21

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:d2ad05935504 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-007-400-168 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-007-400-168

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-007-400-168

306-007-400-168

Edgeboard Connectors Overview

The EDAC Inc. 306-007-400-168 is a standard card edge connector from the 306 series, designed for dual-edge PCB mounting. It features 14 positions with a female contact configuration and a 0.156-inch (3.96mm) centerline spacing. The unit utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulation body. Rated for an operating temperature range of -40°C to 105°C, it supports card thicknesses between 0.054 and 0.070 inches. The connector employs a flush mount installation method with top opening and threaded inserts.

Edgeboard Connectors Feature Summary

Dual-edge female receptacle design for secure board engagement
Flush mount flange configuration with top opening capability
Thermoplastic polyester insulation material for structural stability
Threaded insert integration for robust panel attachment

Edgeboard Connectors Applications

Industrial control system interface connections
Telecommunications equipment backplane interconnects
Medical device internal module assembly
Consumer electronics expansion slot integration

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and flange thread specifications. Confirm the package quantity aligns with production requirements. Ensure compatibility with the target PCB stack-up dimensions. Check for RoHS compliance status if restricted substances are prohibited in the final assembly process.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection with flush mounting is required. The 0.156-inch spacing suits standard industrial board layouts. Consider the tin plating for general-purpose applications where gold is not mandatory. Verify that the threaded insert feature meets the mechanical retention needs of the enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and spacing options. It is manufactured by EDAC Inc., a provider of interconnect solutions. The product line focuses on reliable performance for diverse electronic applications.
