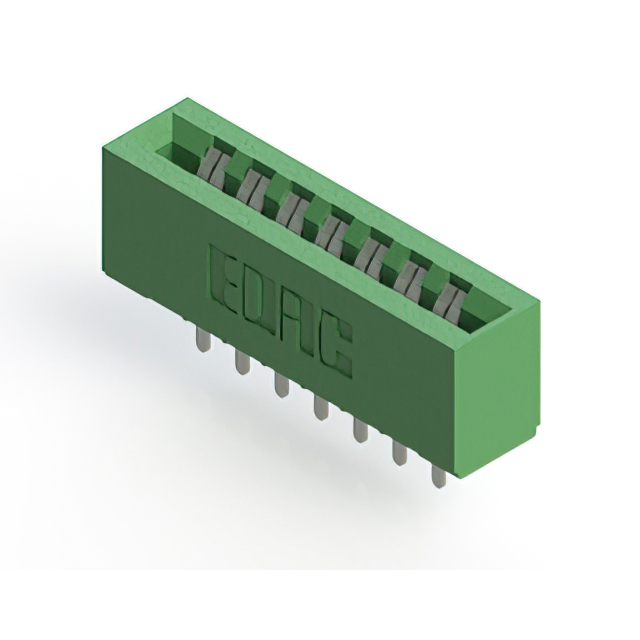

306-007-420-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-007-420-101
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-007-420-101
Edgeboard Connectors Overview
The EDAC Inc. 306-007-420-101 is a standard card edge connector receptacle featuring 14 positions with a single centerline row. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed for .062 inch (1.57 mm) nominal thickness printed circuit boards. The unit employs gold-plated copper alloy contacts with solder pin termination. Constructed with a thermoplastic polyester housing, it supports panel mount installation in a vertical orientation.
Edgeboard Connectors Feature Summary
- Accepts printed circuit boards with a nominal thickness of 1.57 mm
- Features low profile insulator body construction
- Utilizes gold-plated copper alloy contacts for reliable signal transmission
Edgeboard Connectors Applications
- Computing and storage systems
- Medical equipment interfaces
- Industrial control panels
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm contact plating and termination style. Confirm that the board thickness matches the 1.57 mm design specification. Ensure the mounting style aligns with the panel mount requirement. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a single-row card edge interface is required. The 3.96 mm pitch accommodates standard board layouts. Verify that the vertical panel mount configuration fits the enclosure constraints. Ensure the gold plating meets the environmental durability needs of the application.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which provides interconnect solutions for various sectors including aerospace and communications. The series offers diverse configurations for card edge and rack & panel applications. EDAC designs these products to meet rigorous quality standards for global distribution channels.
Edgeboard Connectors Replacement Considerations
Cross-reference with other 306 Series variants for different position counts or plating options. Verify mechanical dimensions and electrical ratings match before substitution.
