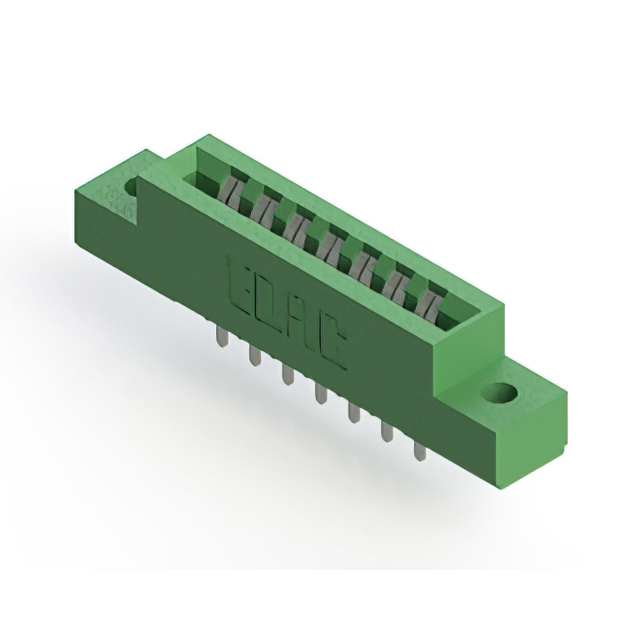

306-007-420-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-007-420-102
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-007-420-102
Edgeboard Connectors Overview
The EDAC Inc. 306-007-420-102 is a standard card edge connector from the 306 series, designed for vertical panel mount applications. It features a dual female configuration with 14 positions and a 0.156-inch (3.96 mm) pitch. The connector supports a maximum operating temperature range of -40°C to +105°C and has a current rating of 5 A. Constructed with copper alloy contacts and thermoplastic polyester insulation, it utilizes a solder pin termination method.
Edgeboard Connectors Feature Summary
- Vertical panel mount design for secure installation
- Dual female contact configuration for board interface
- Thermoplastic polyester housing material
- Solder pin termination for PCB connection
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Test and measurement devices
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to ensure correct plating and mechanical specifications. Confirm that the selected variant matches the required pitch and position count for the target application. Check RoHS compliance status if environmental regulations apply to the end product.
Edgeboard Connectors Selection Notes
Select this component when a vertical, dual-sided card edge interface is required for panel mounting. Ensure the host PCB thickness accommodates the specified contact length. Verify that the 5 A current rating and thermal limits meet the operational requirements of the circuit design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various configurations in terms of position count and contact arrangement. The 306-007-420-102 specifically provides a 14-position dual female solution with a 3.96 mm pitch.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or plating options. Cross-reference with other manufacturers' 0.156 inch pitch dual card edge connectors if alternative sourcing is necessary.
