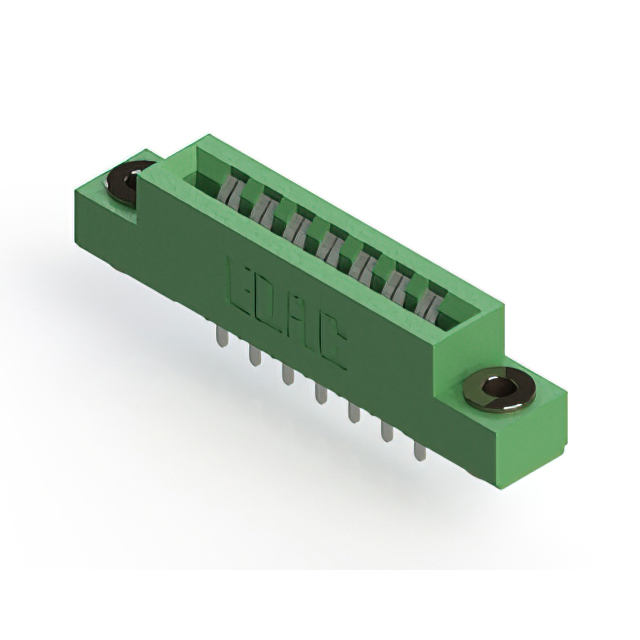

306-007-420-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-007-420-103
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-007-420-103
Edgeboard Connectors Overview
The EDAC Inc. 306-007-420-103 is a standard card edge connector receptacle designed for panel mount applications. It features a dual-edge configuration with 7 positions and a 3.96 mm pitch. The connector utilizes copper alloy contacts with a tin finish, rated for 5 A current. It supports board thicknesses from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact design for secure board insertion
- Thermoplastic polyester housing provides electrical insulation
- Vertical panel mount orientation with solder pin termination
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- General-purpose electronic module mounting
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to ensure correct contact finish and housing color specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to ordering. Check distributor availability as lead times may vary significantly for this component series.
Edgeboard Connectors Selection Notes
Select this model when a dual-edge card edge connector with a 3.96 mm pitch is required. Ensure the mating PCB thickness falls within the 1.37 mm to 1.78 mm specification range. Verify that the vertical panel mount style aligns with the mechanical enclosure design constraints.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 Series, which offers a range of standard card edge connectors. The series provides various position counts and mounting styles to accommodate diverse electronic assembly needs while maintaining consistent interface dimensions.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for direct substitutes. Alternative part numbers within the same series may offer different position counts or contact finishes while maintaining identical mechanical interfaces.
