306-007-420-168

Edgeboard Connectors Overview

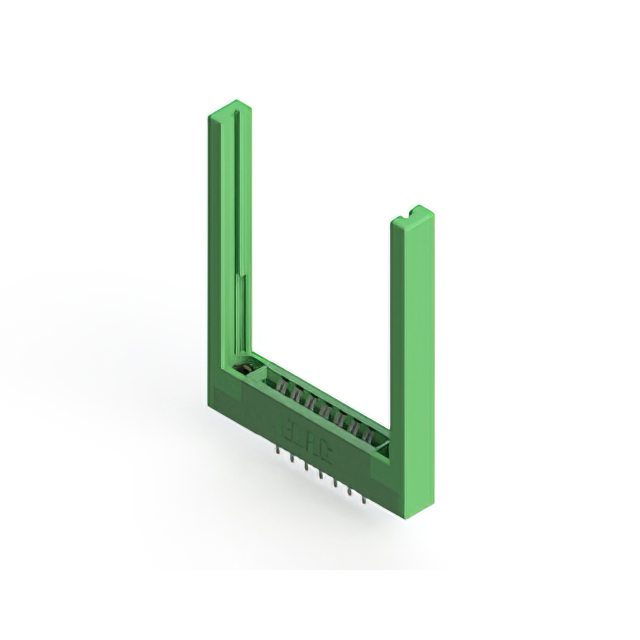

The EDAC Inc. 306-007-420-168 is a dual-sided female card edge connector from the 306 series, designed for panel mount and through-hole installation. It features 14 positions with a 0.156-inch (3.96 mm) pitch across two rows. The contacts are made of copper alloy with a gold finish, utilizing cantilever spring contact types. The insulator is green thermoplastic polyester, rated for operation between -40°C and 105°C. It accepts board thicknesses from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-sided female configuration with cantilever spring contacts for reliable signal transmission
• Panel mount design with flange featuring top opening and threaded inserts for secure mechanical attachment
• Gold-plated copper alloy contacts ensure corrosion resistance and low contact impedance
• Thermoplastic polyester insulator provides thermal stability within specified operating temperature ranges

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interconnects
• Telecommunications equipment with standard board thickness constraints
• Test and measurement instrumentation panels

Edgeboard Connectors Procurement Notes

Verify that the specific suffix 168 corresponds to the required flange and mounting configuration as defined in the official EDAC 306 Series Ordering Guide. Confirm RoHS3 compliance status and lead times directly with authorized distributors, as availability may vary by region. Ensure the receiving facility has appropriate handling procedures for surface-mount or through-hole soldering processes compatible with this component's termination style.

Edgeboard Connectors Selection Notes

Select this part when a dual-sided female connector with a 0.156-inch pitch is required for boards between 0.054 and 0.070 inches thick. The 306-007-420-168 is suitable for applications needing panel-mounted receptacles with integrated flanges. Compare against other 306 series variants if different pin counts, single-sided configurations, or alternative mounting styles are needed. Verify that the 14-position layout matches the target PCB edge connector footprint.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, a line of standard card edge connectors known for their versatility in rack and panel applications. The series offers various configurations including single and double-sided options with different pitch and position counts. The 306-007-420-168 specifically addresses needs for dual-sided connectivity with fixed panel mounting hardware, distinguishing it from free-hanging or bracket-mounted alternatives in the same family.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 306-007-521-158 for similar specifications but verify flange differences. No direct public substitutes from other manufacturers are confirmed without detailed dimensional matching.
