306-007-421-103

Edgeboard Connectors Overview

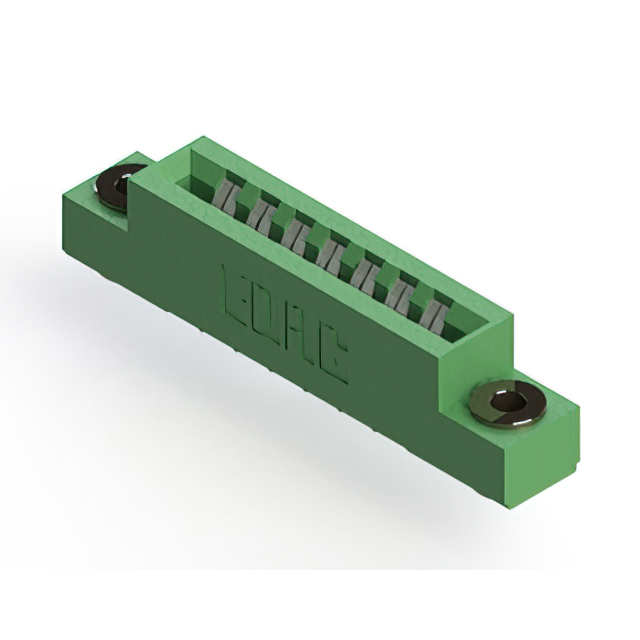

The EDAC Inc. 306-007-421-103 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features 7 positions and a 3.96 mm pitch, accommodating a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with a current rating of 5 A and employs solder pin termination. Constructed with a thermoplastic polyester housing, this receptacle is suitable for reliable electrical interconnection in industrial environments.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment interface modules
• Medical device internal circuitry connections

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or official manufacturer channels. Confirm RoHS compliance status and specific packaging details prior to order placement. Ensure that the selected variant matches the required contact count and termination style for your PCB layout. Request updated datasheets to validate current manufacturing specifications and availability constraints.

Edgeboard Connectors Selection Notes

Select this model when a low-profile, single-row card edge connector is required for vertical panel mounting. The 3.96 mm pitch and 7-position configuration suit compact designs needing moderate current capacity. Consider the gold plating for enhanced signal integrity in critical applications. Verify that the housing material meets the thermal requirements of the operating environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors, which are widely used in various electronic assemblies. The series offers multiple position counts and termination options to accommodate diverse design needs. The 306-007-421-103 specifically addresses applications requiring a small form factor with reliable vertical connectivity.

Edgeboard Connectors Replacement Considerations

Consult EDAC's official cross-reference guides for direct substitutes within the 306 series. Verify mechanical dimensions and electrical ratings before considering alternative manufacturers. Ensure any replacement maintains the same pitch, contact configuration, and mounting style.
