306-007-421-108

Edgeboard Connectors Overview

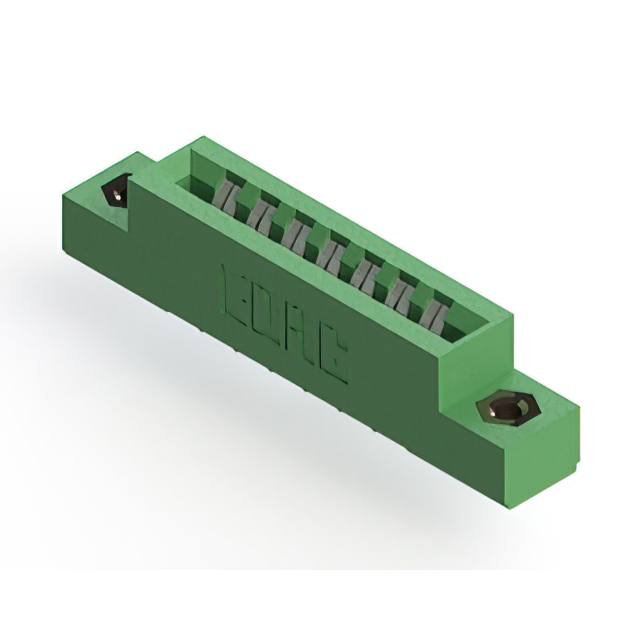

The EDAC Inc. 306-007-421-108 is a standard card edge connector receptacle featuring 14 positions arranged in a dual configuration with a 3.96 mm pitch. Designed for panel mount installation, it utilizes solder pin termination and gold-plated copper alloy contacts rated for 5 A. The housing is constructed from thermoplastic polyester, supporting PCB thicknesses of 1.37 mm to 1.78 mm. Operating temperatures range from -40°C to 105°C, ensuring reliability in industrial environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board retention
• Gold-plated contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides thermal stability
• Panel mount orientation facilitates structural integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating and flange specifications. Ensure compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Confirm that the panel mounting requirements align with the vertical installation style and available thread plug options before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for panel-mounted applications. It is suitable for systems needing 14 positions with high-current capability up to 5 A. Consider the operating temperature range and material composition to ensure environmental compatibility with the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-007-421-108 specifically addresses needs for dual-edge connectivity with robust mechanical retention and standardized spacing for widespread industry compatibility.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 306-007-521-158 and 306-007-421-168. Verify that alternative parts match the 14-position count, dual-edge configuration, and 3.96 mm pitch requirements before substitution.
