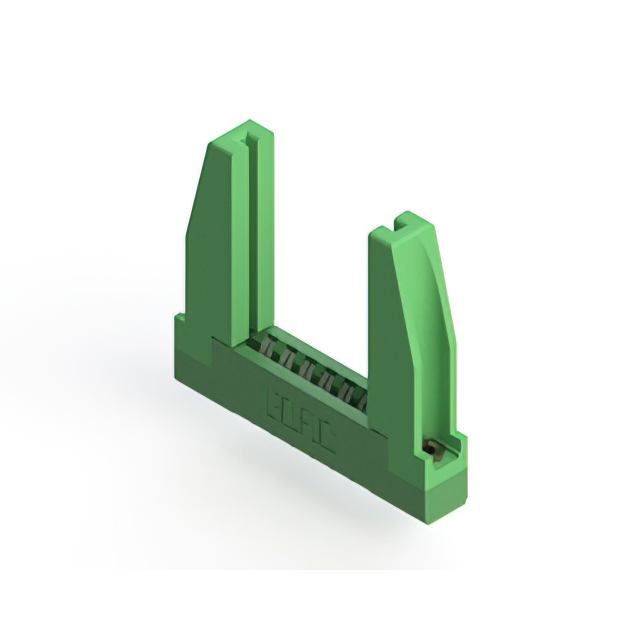

306-007-421-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-007-421-178
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-007-421-178
Edgeboard Connectors Overview
The EDAC Inc. 306-007-421-178 is a standard card edge connector receptacle from the 306 Series. It features 14 positions with a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component utilizes gold-plated copper alloy contacts for reliable signal transmission and employs a solder pin termination type. Designed for panel mount installation, it offers a vertical orientation with a low-profile insulator body constructed from thermoplastic polyester.
Edgeboard Connectors Feature Summary
- Accepts 0.062 inch nominal thickness PCBs
- Low profile insulator body design
- Gold plated copper alloy contacts
Edgeboard Connectors Applications
- Industrial control systems
- Communication equipment
- Consumer electronics assemblies
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required board thickness and mounting style. Confirm that the gold plating specification matches the application's conductivity requirements. Check RoHS compliance status against current regulatory standards before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this model when a single row of contacts is sufficient for the interface design. Ensure the panel cutout dimensions align with the flush mount and top opening specifications. Verify that the 0.156 inch pitch accommodates the target PCB trace layout without interference.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 Series, which provides standard card edge connectors for various industrial applications. The series is characterized by its versatility in mounting styles and contact configurations, supporting both single and dual-sided card interfaces with robust mechanical stability.
Edgeboard Connectors Replacement Considerations
Cross-reference part numbers within the same 306 Series family for alternative position counts or termination types. Verify dimensional compatibility with existing panel mounts and PCB designs before substituting.
