306-007-500-102

$5.70

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:b996abb2e540 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-007-500-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-007-500-102

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-007-500-102

306-007-500-102

Edgeboard Connectors Overview

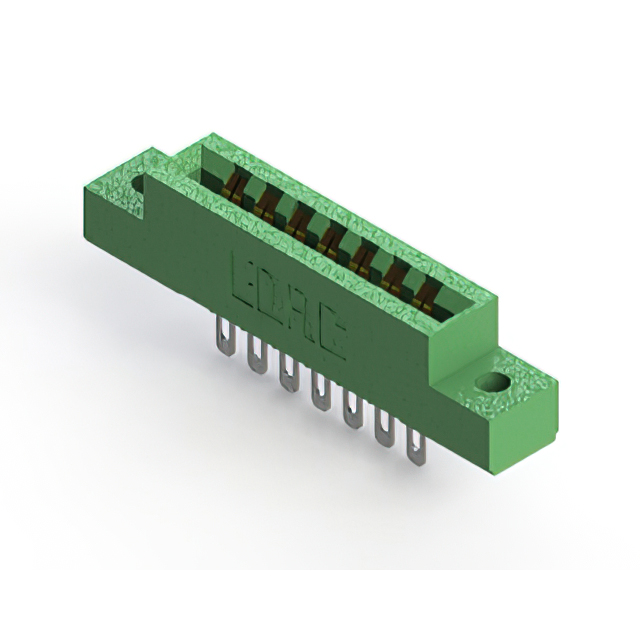

The EDAC Inc. 306-007-500-102 is a dual female card edge connector designed for panel mount applications. It features 14 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.200 inches (5.08 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are made of copper alloy with a gold finish, providing a current rating of 5 A and an insulation resistance of 5 GOhms. The operating temperature range extends up to +105°C.

Edgeboard Connectors Feature Summary

Dual female configuration for secure board insertion
Gold-plated copper alloy contacts ensure reliable conductivity
Panel mount design with solder eyelet termination
Thermoplastic housing material for structural stability

Edgeboard Connectors Applications

Computing and storage systems
Medical equipment interfaces
Industrial control panels
Communications network hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, contact finish, and mounting style. Ensure the target PCB thickness matches the 0.062-inch specification. Confirm that the panel mount orientation and solder eyelet termination align with the assembly requirements before finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for standard 0.062-inch thick boards. The 0.156-inch pitch suits applications needing moderate density without excessive complexity. Verify that the 5 A current rating and +105°C thermal limit meet the system's electrical and environmental demands compared to higher-density or high-temperature alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of edgeboard connectors, established in 1966. The series provides interconnect solutions for computing, medical, aerospace, and industrial sectors. EDAC focuses on rigorous quality assurance and global logistics to deliver error-free parts meeting worldwide standards for rack and panel applications.
