306-007-500-103

Edgeboard Connectors Overview

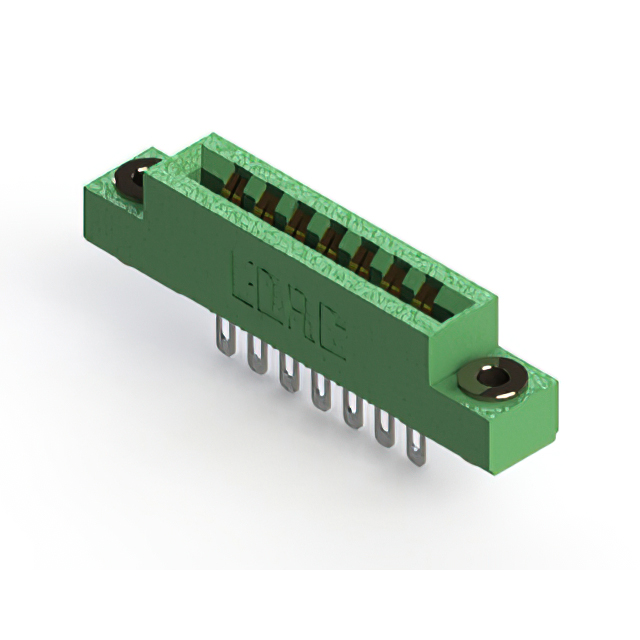

The EDAC Inc. 306-007-500-103 is a dual female card edge connector featuring 14 positions with a 0.156-inch (3.96mm) contact spacing. Designed for panel mounting, it utilizes wire hole termination and copper alloy contacts with gold plating. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It operates within a temperature range of -40°C to 105°C and is constructed from thermoplastic insulation.

Edgeboard Connectors Feature Summary

• Dual female configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Panel mount installation with wire hole termination

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment interfaces
• General-purpose electronic assemblies needing card edge connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current catalog to ensure compatibility with required board thickness and termination style. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region and production batch. Cross-reference the DigiKey part number 151-306-007-500-103 for accurate sourcing information.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, dual-row female connector is needed for standard 1.57mm thick PCBs. Ensure the application environment stays within the specified -40°C to 105°C operating range. Consider the 0.156-inch spacing for layout constraints and verify that the panel mounting style aligns with the mechanical design requirements of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which offers various position counts and configurations for card edge applications. The series is characterized by its durable thermoplastic housing and reliable gold-plated contacts, suitable for general industrial and commercial electronics where stable signal transmission is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 306-007-500-107, which shares similar electrical characteristics but may differ in plating specifications or packaging. Always validate mechanical dimensions and pinout compatibility before substitution.
