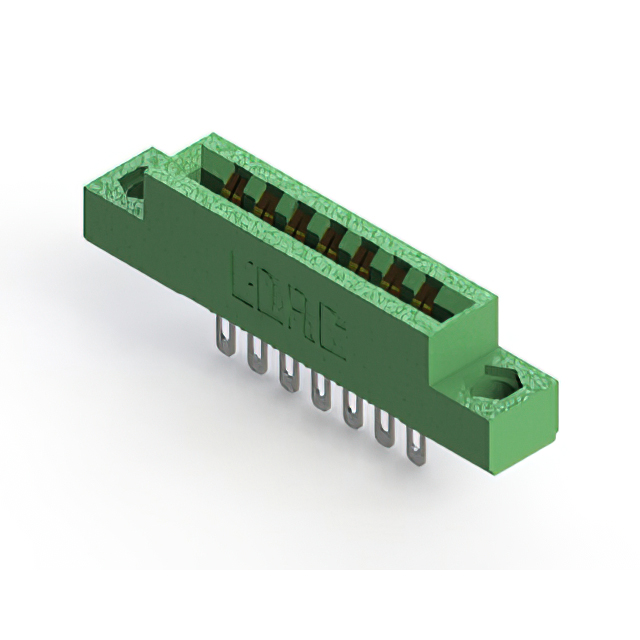

306-007-500-104

$5.70

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:624d04bf766f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-007-500-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-007-500-104

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-007-500-104

306-007-500-104

Edgeboard Connectors Overview

The EDAC Inc. 306-007-500-104 is a dual-edge female card edge connector designed for panel mounting applications. It features 14 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes cantilever contacts with gold plating and accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). Constructed with thermoplastic polyester insulation, it operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Dual-edge female configuration with cantilever contacts for reliable board insertion
Gold-plated copper alloy terminals ensure durable electrical connections
Thermoplastic polyester insulator provides stability across wide temperature ranges
Panel mount design with flange features for secure mechanical installation

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Embedded computing module interfaces
Test and measurement instrument signal routing

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm exact pin count, contact spacing, and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status and environmental certifications required for the intended deployment environment. Cross-reference part numbers with distributor catalogs to avoid substitution errors.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 0.156-inch spacing is required for panel-mounted applications. Verify that the target PCB thickness falls within the specified 0.054 to 0.070-inch range. Consider the operating temperature limits and material composition for environmental suitability. Compare against similar series parts if different row counts or contact types are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series of standard card edge connectors. The series offers various position counts and configurations for diverse interconnect needs. It is manufactured by EDAC Inc., a provider of electronic interconnection solutions. The part number structure indicates specific attributes regarding position count, contact type, and packaging.
