306-007-500-107

Edgeboard Connectors Overview

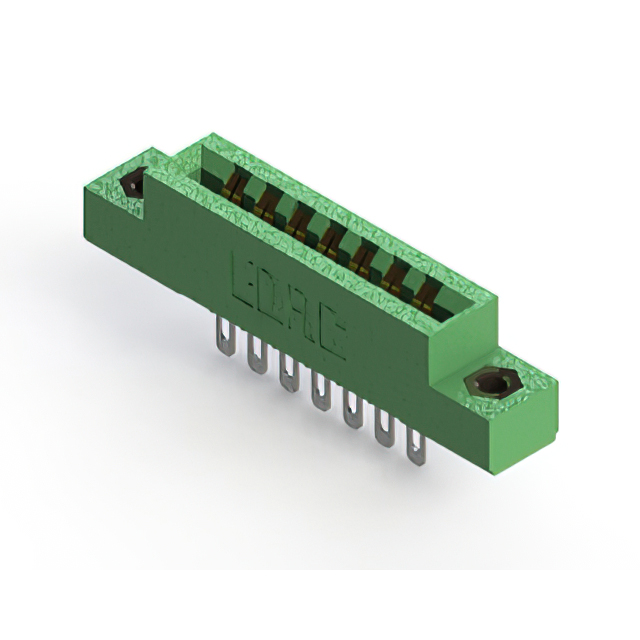

The EDAC Inc. model 306-007-500-107 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. This receptacle features 7 positions with a contact spacing of 0.156 inches (3.96 mm). It utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. The connector is engineered to accommodate dual-edge card types and supports a board thickness range of 0.054 to 0.070 inches (1.37 mm to 1.78 mm). Constructed with thermoplastic insulation, it provides stable mechanical support for high-density interconnects in electronic assemblies requiring robust panel-mounted interfaces.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure structural integration
• Gold-plated copper alloy contacts for enhanced conductivity
• Compatible with dual-edge card edge PCB designs
• Thermoplastic housing for thermal stability

Edgeboard Connectors Applications

• Panel-mounted electronic interface modules
• Dual-edge circuit board interconnections
• High-density signal routing systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, plating type, and termination style. Ensure the selected variant matches the required board thickness and mounting orientation. Cross-reference the part number with official EDAC documentation to validate compliance with recent design revisions and material specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for dual-edge cards with a 3.96 mm pitch. Confirm that the application environment does not exceed the thermal limits of the thermoplastic housing. Verify that the target PCB thickness falls within the specified mechanical tolerance range to ensure proper contact engagement and long-term reliability during mating cycles.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and termination options tailored for industrial and commercial electronics. The 306-007-500-107 specifically addresses needs for moderate density connections with durable gold contacts, fitting into broader system architectures requiring reliable vertical interconnects.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 7-position count, 3.96 mm pitch, and vertical panel mount style. Verify compatibility with dual-edge card specifications and identical contact plating requirements. Consult EDAC technical resources for approved alternative part numbers within the same series or cross-compatible families.
