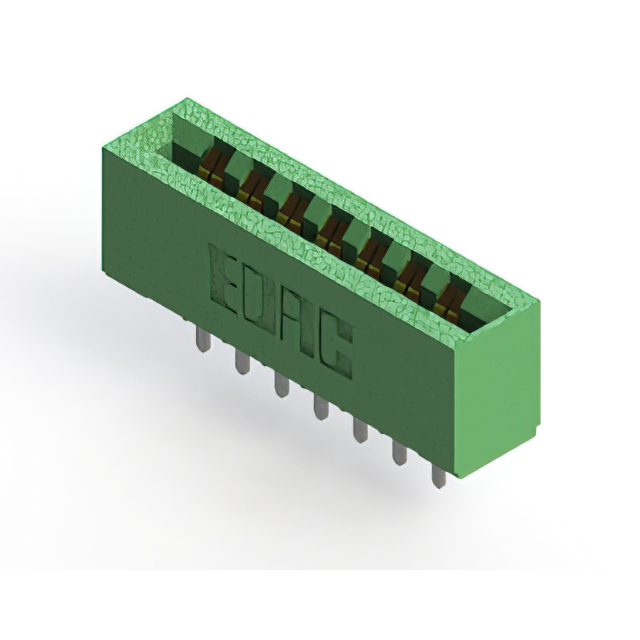

306-007-520-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-007-520-101
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-007-520-101
Edgeboard Connectors Overview
The EDAC Inc. 306-007-520-101 is a standard card edge connector from the 306 series, designed for dual-edge board applications. It features 14 positions with a 0.156-inch (3.96 mm) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic housing. Rated for 5 A current, it supports panel mount installation at a vertical angle. The unit employs solder pin termination for secure PCB attachment.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for robust signal transmission
- Gold-plated contacts ensure reliable conductivity and corrosion resistance
- Vertical panel mount design facilitates structured integration
Edgeboard Connectors Applications
- Medical instrumentation and imaging systems
- Music recording equipment interfaces
- Digital signal processing modules
Edgeboard Connectors Procurement Notes
Verify component authenticity through authorized EDAC channels or certified distributors. Confirm RoHS compliance status matches project requirements. Ensure storage conditions prevent contact oxidation prior to assembly. Cross-reference datasheet revisions to validate mechanical dimensions against existing PCB footprints.
Edgeboard Connectors Selection Notes
Select this model when dual-edge connectivity is required for 14-position signals. Verify that the target PCB thickness aligns with the connector's acceptance range. Consider the 5 A current rating for power distribution needs. Ensure vertical mounting orientation fits within the enclosure constraints.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for general-purpose electronic interconnections. The 306-007-520-101 specifically addresses dual-edge board applications requiring high reliability in industrial and professional environments.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for direct cross-references. Verify mechanical compatibility including pitch and board thickness before substituting. Generic equivalents may lack specific plating or material specifications.
