306-007-520-102

Edgeboard Connectors Overview

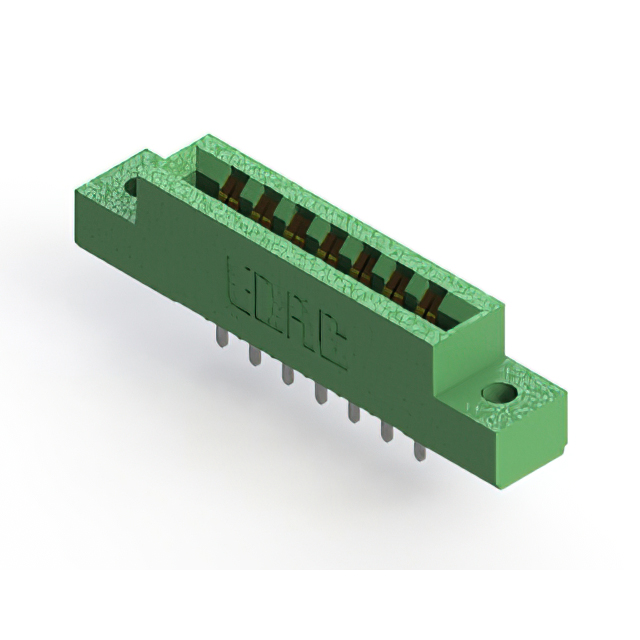

The EDAC Inc. 306-007-520-102 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a single row of contacts with a pitch of 3.96 mm (0.156 inches) and accommodates a nominal printed circuit board thickness of 1.57 mm (0.062 inches). The connector utilizes gold-plated copper alloy contacts housed in a green thermoplastic polyester insulator body. This low-profile design ensures reliable electrical interconnection for edgeboard applications requiring vertical mounting.

Edgeboard Connectors Feature Summary

• Single centerline row configuration with 0.156 inch contact spacing
• Low profile insulator body constructed from thermoplastic polyester
• Gold-plated copper alloy contacts for enhanced conductivity
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Medical interconnect solutions such as ventilators and CPAP machines
• Ambulance communication and monitoring systems
• General purpose edgeboard connections in industrial equipment

Edgeboard Connectors Procurement Notes

Verify the specific pin count and gender configuration against the official datasheet before procurement, as suffix variations may alter physical dimensions or contact arrangements. Confirm that the target PCB thickness aligns with the 0.062-inch nominal specification to ensure proper mechanical retention. Ensure compliance with RoHS3 requirements if environmental regulations apply to the final assembly. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 3.96 mm pitch connector is required for panels or chassis mounting. The 306 series offers a low-profile solution suitable for space-constrained enclosures. Consider the thermoplastic polyester material for general environmental resistance. Verify that the vertical mounting angle meets the system's spatial constraints relative to adjacent components.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors, which are engineered for robust performance in demanding environments. The series typically includes various configurations differing by position count, contact spacing, and mounting styles. The 306-007 variant specifically addresses applications needing a single row connection with a standard 0.156-inch pitch, balancing density with ease of insertion.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 306-033-520-102, though position counts differ. Verify compatibility by comparing contact spacing, board thickness acceptance, and mounting hole patterns. No other manufacturers' direct cross-references are confirmed in public documentation.
