306-007-520-108

Edgeboard Connectors Overview

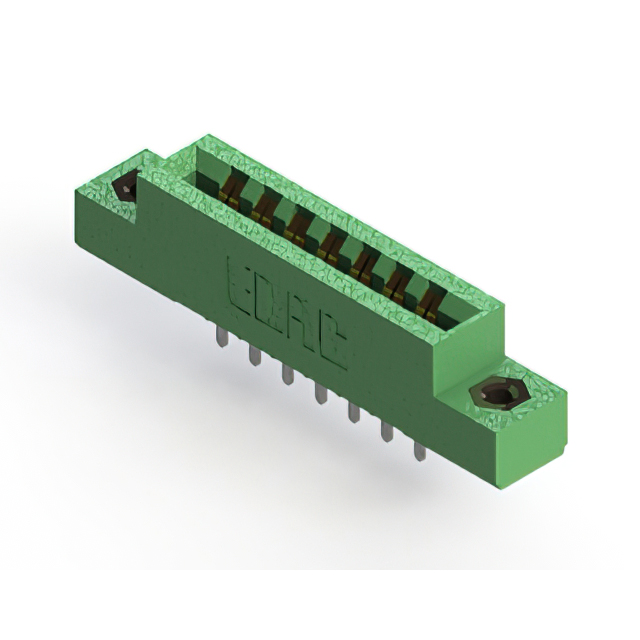

The EDAC Inc. 306-007-520-108 is a standard card edge connector from the 306 series, designed for vertical panel mounting. It features a single row of 7 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic housing. It supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. The unit provides an insulation resistance of 5 GOhms and carries a current rating of 5 A.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure installation
• Gold-plated copper alloy contacts for reliable signal transmission
• Green thermoplastic insulator housing for durability

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment
• Medical devices
• Energy management systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required termination styles and mounting options. Confirm that the single-row, seven-position configuration matches the target PCB design. Check RoHS compliance documentation for regulatory adherence in restricted substance environments before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-sided card edge interface is required with a 3.96 mm pitch. Ensure the host PCB accommodates the specified 1.57 mm thickness constraint. Consider the 5 A current rating and thermal limits for high-power applications. Verify that the panel-mount style aligns with the mechanical assembly requirements of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-007 variant specifically addresses low-pin-count applications requiring robust vertical connectivity. EDAC provides extensive accessory support for these connectors.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's cross-reference guide or engineering support for verified alternatives if this specific part number is unavailable.
