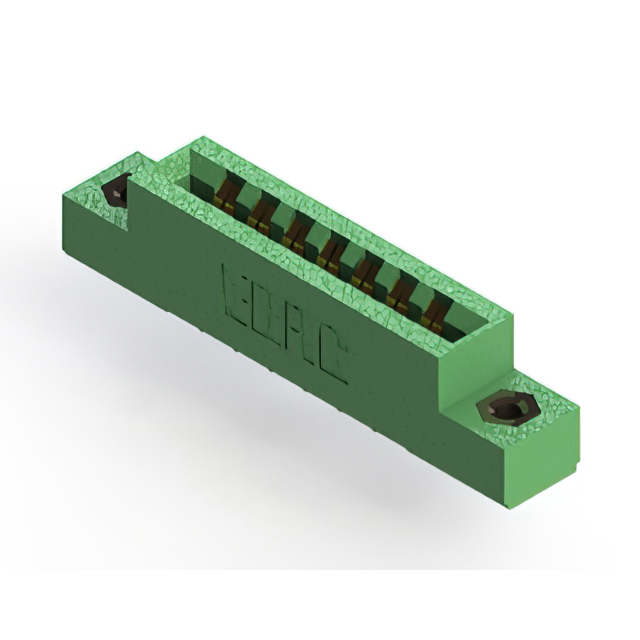

306-007-521-108

$7.56

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:98585bbb61a0 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-007-521-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-007-521-108

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-007-521-108

306-007-521-108

Edgeboard Connectors Overview

The EDAC Inc. 306-007-521-108 is a standard card edge connector from the 306 series, designed for single-side card edge applications. It features a contact spacing of 3.96 mm (0.156 inches) and accommodates 7 positions in a single row. The connector utilizes copper alloy contacts with gold plating to ensure reliable signal transmission. Designed for through-hole mounting, it supports PCB thicknesses of 1.57 mm. The unit operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Single-row configuration with 7 positions for compact circuit board integration
Gold-plated copper alloy contacts provide durable electrical connectivity
Through-hole termination method ensures secure mechanical attachment to the PCB

Edgeboard Connectors Applications

Single-sided card edge interconnects
Panel mount electronic assemblies
Standard PCB header connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the single-row layout meets the design requirements. Cross-reference the part number with official EDAC documentation to confirm availability and compliance with relevant environmental standards before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 3.96 mm spacing is required for low-pin-count applications. The through-hole solder termination is suitable for standard manufacturing processes requiring robust mechanical fixation. Consider the operating temperature range and insulation resistance values to ensure suitability for the intended environmental conditions. Verify that the single-sided contact arrangement aligns with the signal routing constraints of the host system.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which offers extensive customization options for card edge connectors. The series provides various design choices to tailor interconnect requirements, including different contact terminations, mounting styles, and guide solutions. The 306 series is engineered to support high-temperature insulators and multiple row configurations, allowing designers to adapt the connector to specific spatial and electrical needs.
